None Prism Distance: | 500m | Accuracy: | 3" |
---|

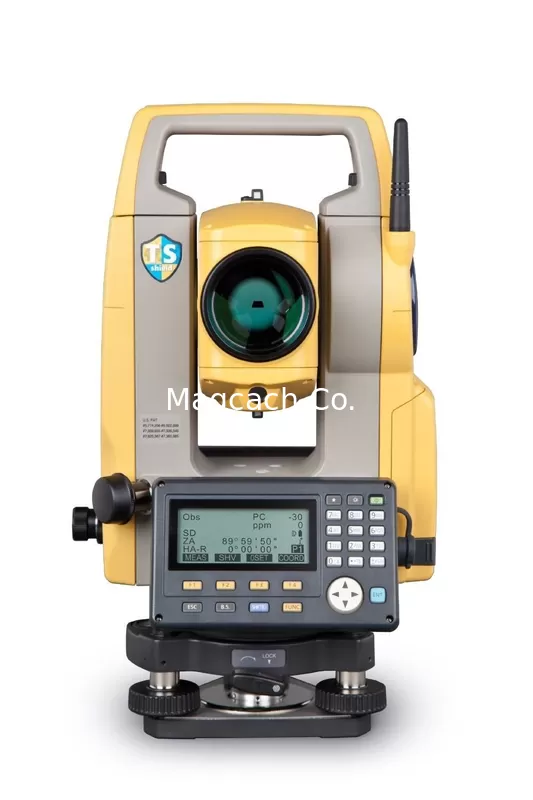

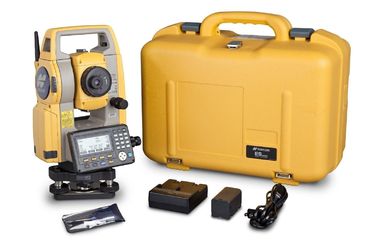

Topcon ES-103 Total Station None Prism 5” accuracy
The new ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.
Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.
Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.
Ultimate in Rechargeable operation - 36 Hours
Up to 36 hours of operation on a single charge.*1
Eliminates the need for nightly recharging and carrying extra batteries.
Work with confidence all day without the worry of dead batteries
Rugged, Waterproof Design
Waterproof/Dustproof IP66 design handles the toughest environments
Magnesium-alloy housing providing stable angle accuracy Completely
Easy Access USB 2.0 Memory
Up to 8MB storage
Environmentally protected
Compatible with industry standard accessories and cables
Ultra-Powerful, Advanced EDM
500m non-prism range
4000m prism range
Less than 1 second fine measurement
Operating time may vary depending on environmental conditions and type of work being performed.
QUICK Specifications | |
Angle Measurement | |
Min. Resolution/Accuracy | |
ES-101 | 0.5”/1” |
ES-102 | 1”/2” |
ES-103 | 1”/3” |
ES-105 | 1”/5” |
ES-107 | 1”/7” |
IACS (Independent Angle Calibration System) | Standard om 1” & 2” models |
Compensation | Dual-axis compensator |
Distance Measurement | |
Prism EDM Range | 4000m (ES-107 3000m) |
Prism EDM Accuracy | 2mm+2ppm |
Non-Prism Range | 500m |
Non-Prism Accuracy | 3mm+2ppm (0.3-200m) |
Measuring Time | Fine: 0.9 sec Rapid: 0.7 sec Tracking: 0.3 sec |
Communications | |
LongLink™ rover communications utilizing Class 1 Bluetooth | |
USB 2.0 Slot | |
RS-232C Serial | |
General | |
Display/Keyboard | Dual, Graphic, Backlit LCD (ES-107 Single) |
Battery Operation | up to 36 hours |
Dust/Water Protection | IP66 |
Wireless Connection | Bluetooth Class 1 |
Operating Range | -20C to +50C -30C to +50C -20C to +60C |
