Magnifications: | 32X | Feature: | Rapid, Accurate, And Stable Automatic Compensation |
---|---|---|---|
Focus: | Ultra-Short 20cm (7.9 In.) Focusing | Dependability: | All-Weather Dependability |
Adjustment: | Clampless, Endless Fine Horizontal Adjustments |

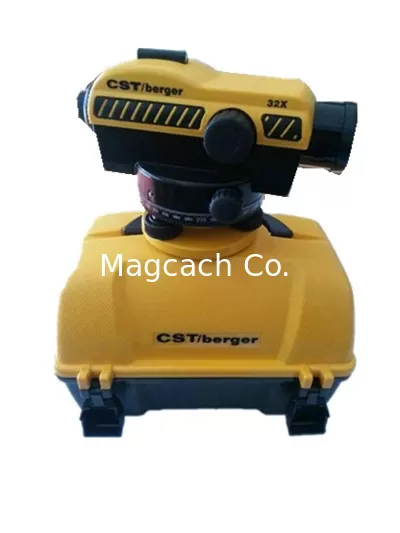

CST Berger 32X Auto Level
Product Description:
This automatic level is the right choice for accuracy, speed, and reliability, with new features that deliver added value.
You get highend technology and more than 125 years' experience and expertise from CST/Berger, a world leader in
surveying equipment and accessories. This level handles homebuilding, road work, excavations, and more. It features all-weather, waterproof construction; a penta prism for even bubble viewing; and a top-mounted peep sight.
It comes complete with everything you need to start work, including a CST Berger 32 level, hard carrying case, plumb bob, wrench,
and adjusting pin. Leveling accuracy is 1/16 of an inch at 150 feet. Working range with rod is 300 feet.
The shipping weight is 24 pounds.
Telescope | ||
Length | 215mm (8.46in.) | |
Magnification | 24x | |
Objective aperture | 32mm (1.26in.) | |
Resolving power | 4" | |
Field of View (at 100m/328ft.) |
1°25' (2.5m / 8.2ft.) |
|
Minimum focus | 0.2m (7.9in.) from end of telescope 0.3m (1ft.) from instrument center |
|
Image | Erect | |
Reticle pattern | Cross line | |
Stadia constant | 0 | |
Stadia ratio | 100 | |
Focusing knob | 1-speed | |
Sighting aid | Gun sight | |
Lens hood | - | |
Accuracy (standard deviation for 1km double run leveling) | ||
Without micrometer | 2.0mm (0.08in.) |
|
With micrometer | - | |
Compensator | ||
Type | Pendulum compensator with magnetic damping system | |
Setting accuracy | 0.5" | |
Working range | ±15' | |
Circular level | ||
Sensitivity | 10' / 2mm | |
Mirror | Plane mirror | |
Horizontal circle | ||
Diameter | 103mm (4.1 in.) | |
Graduations | 1° / 1gon | |
General | ||
Horizontal motion drive | Clampless, endless, double-sided knobs | |
Water resistance | IPX6 (EC 60529:2001) | |
Operating temperature | -20 to +50°C (-4 to +122°F) | |
Width | 130mm (5.12in.) | |
Length | 215mm (8.46in.) | |
Height | 135mm (5.31in.) | |
Weight | 1.7kg (3.7 lb.) |
