FOIF High Precision Digital Auto Level EL302A

Name: FOIF High Precision Digital Auto Level EL302A
Brand: FOIF
SKU: EL302A
Price: 1 USD
Availability: InStock
Rating: 5 (174 reviews)
ISBN: 11765285

FOIF High Precision Digital Auto Level EL302A supplier

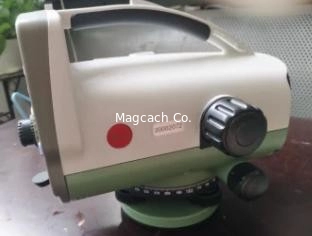

Large Image : FOIF High Precision Digital Auto Level EL302A

Product Details:

Place of Origin:	China
Brand Name:	FOIF
Certification:	CE
Model Number:	EL302A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	with standard Packing way
Payment Terms:	T/T, L/C, Western Union

Contact Now

Detailed Product Description

Standard Deviation Of 1km Double Run:	±0.3mm	Operating:	Easy One-touch Operation

FOIF Digital Auto Level EL302A

FOIF High Precision Digital Auto Level EL302A

Easy one-touch operation, simply push the red button
Quick height and distance result - the reading is displayed almost instantly
Reliable and error-free reading, even in dim light conditions
Quicker and easier than an optical level
Standard deviation of 1km double run: ≤±0.6mm(Electronic reading with Invar staff)
Far measuring range: ≧105m
On board program, height difference measurement between backsight and foresight
Internal memory for data storage, support SD card

Model	EL302A
Accuracy
Standard deviation of km double run
Electronic measurement	invar staff	+/-0.6mm*
	standard staff	+/-1.0mm*
Optical measurement	+/- l.5mm*
Electronic measurement
Time for single measurement	≤2s
Range	2-105m
Measurement modes	Singel, average, tracking
Display resolution(m/in selectable)
Height	0.1mm/0.0001ft
Distance	1mm/0.001ft
Telescope
Clear objective aperature	45mm
Magnification	30x
Field of view at 100m	2.3m
Shortest focus distance	1.0m
Automatic compensator
Working range	14'
Setting accuracy	+/-0.5"
Power
Battery	2000mAh Ni-MH rechargeable
Continuous operating time	12 hours
Measurement programs
On-board programs	BF, BFFB, BFBF, BBFF, FBBF,
	Stake out, intermediate
Onboard adjustment	Yes
Others
Memory	3000 points, support SD card
Display	LCD, 7lines*32characters
Keyboard	Alphanumeric keyboard
Interface	USB, RS232 optional
Sensitivity of circular level	8'/2mm
Water and dusp protection	IP54
Operating temperature	-20°C~50°C
Net weight	3kg
