Stonex S9II GPS Receiver UM980 Board Gnss Rtk
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Customization:: | Available | Available: | Hard Plastic Case |
|---|---|---|---|
| Channels: | 1408 | IMUT Tilt Sensor: | Yes |
| HS Code: | 8526919090 | Package Size: | 55cm * 45cm * 70cm |
| Package Gross Weight: | 30kg |

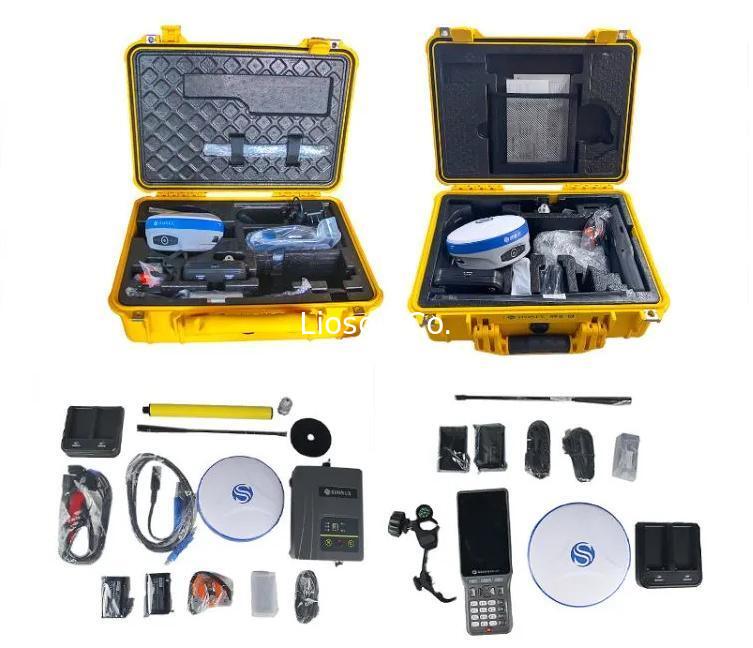

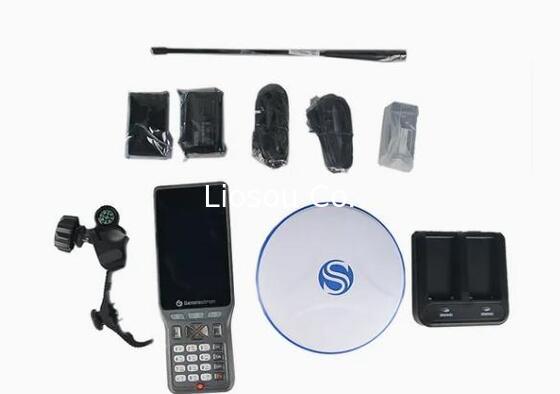

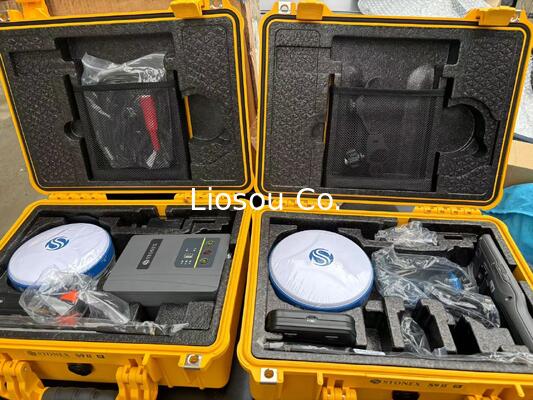

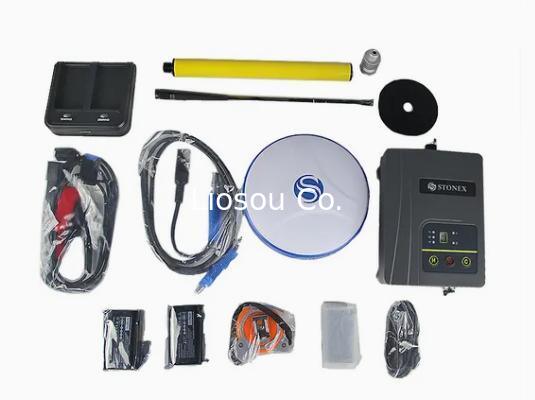

High Precision Survey Instruments Stonex S9II GNSS RTK GPS Receiver Base and Rover with UM980 main board and 1408 channels Tilt sensor IMU function
Equipped with an advanced 1408 channels GNSS board and capable of supporting multiple satellite constellations, including GPS, GLONASS, BEIDOU and GALILEO, Stonex S3II GNSS receiver is an ideal solution for any surveying field work. The advanced receiver design gives S3II excellent signal tracking ability and interference resistant capacity.
The independent R&D LINUX+CORTEX intelligent platform provides users high performance computing and infinitely expanding. The unique internal antenna combines GNSS, Bluetooth and Wi-Fi integrated modules to optimize space and increase performance.
Advantages of portability and speed of operation make S3II GNSS receiver particularly suitable for fieldwork in areas of complex terrain. The Stonex S3II has built-in internal Bluethooth capability that allows the users to choose their data collector model and software.
| Model | S9II | ||
| Satellite system | Beidou+GPS+GLONASS+ Galileo | ||
| Track features | Channel | 1408 | |
| GPS | L1 C/A,L2E,L2C,L5 | ||
| GLONASS | L1 C/A, L1P, L2 C/A(GLONASS M), L2P | ||
| BDS | B1,B2 | ||
| GIOVE-A | L1 BOC, E5A, E5B, E5AltBOC1 | ||
| GIOVE-B | L1 CBOC, E5A, E5B, E5AltBOC1 | ||
| SBAS | WASS,MSAS,ENGOS,QZSS | ||
| Performance indicators | Static measurement of plane precision. | ±(2.5mm + 1ppm)RMS | |
| Static measurement elevation accuracy. | ±(5mm + 1ppm)RMS | ||
| RTK measures plane precision. | ±(10mm + 1ppm)RMS | ||
| RTK measures elevation accuracy. | ±(20mm + 1ppm)RMS | ||
| SBASPositioning (typical) | Plane precision <1m 3DRMS | ||
| Elevation accuracy <5m 3DRMS | |||
| Initialization time | <10s | ||
| Initialization reliability | >99.99% | ||
| Environmental indicators | Working temperature | - 30ºC~+65ºC | |
| Storage temperature | - 40ºC~+80ºC | ||
| Waterproof and dustproof | IP67 | ||
| drop | Resistance to 2 m drop (concrete hard ground) | ||
| Waterproof | Immersing 1 meter in water (30 minutes) | ||
| humidity | 100% condensation resistance | ||
| Memory and data | Internal Storage | Onboard 4G SD card expansion, maximum support 32G. | |
| differential output | RTCM2.3,RTCM3.0,RTCM3.X,CMR,CMR+ | ||
| GNSS antenna performance | The internal integrated quad-feeder microstrip antenna, zero-phase center, built-in multipath suppression plate. | ||
| bluetooth | built-in,V2.0 Class2 | ||
| Network communication | Built-in WCDMA 3.5G network communication module;Customizable CDMA2000 3G network communication. | ||
| Wireless communications | Communication protocol | TrimTalk is interchangeable with international brand radio and can be customized with domestic hosts. | |
| UHF radio | Built-in transceiver | 0.5W/2W | |
| outer launch | 5W/35W | ||
| Working frequency | 410-470MHZ | ||
| Physical and power characteristics. | size | φ19cm×9.9cm | |
| Weight | 1.2kg | ||
| Battery capacity | Single block 3400mAh | ||
| keys | 2 | ||
| service time | 6 hours | ||
| industrial-grade controller P9 | operating system | Windows Mobile 6.5 | |
| Hardware platform | AM335X frequency 1GHz | ||
| onboard memory | RAM:512MB DDR3 onboard memory 4G | ||
| Display | 3.7 inches Blanwiew TFT,480*640VGA resolution ratio | ||
| Battery | 7.2V/3400mAH | ||
| Waterproof and dustproof | IP67 | ||
| Working temperature | - 30ºC~+60ºC | ||
| Storage temperature | - 30ºC~+70ºC | ||
| drop | Resistance to 2 m drop (concrete hard ground) | ||
| camera | 5 megapixel autofocus. | ||
| communication | Wi-Fi bluetooth /USB OTG/3.5G | ||
