High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver

Name: High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver
Brand: FOIF
SKU: A70 PRO
Price: 1 USD
Availability: InStock
Rating: 5 (152 reviews)

High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver supplier

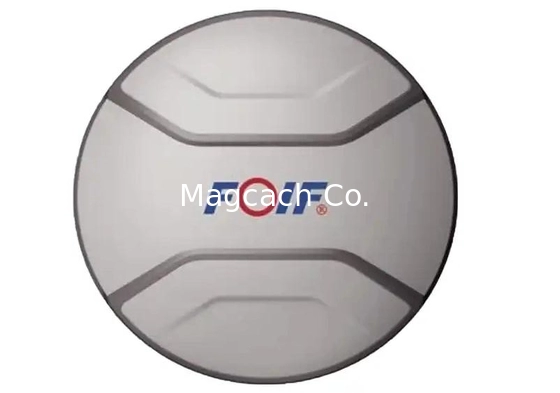

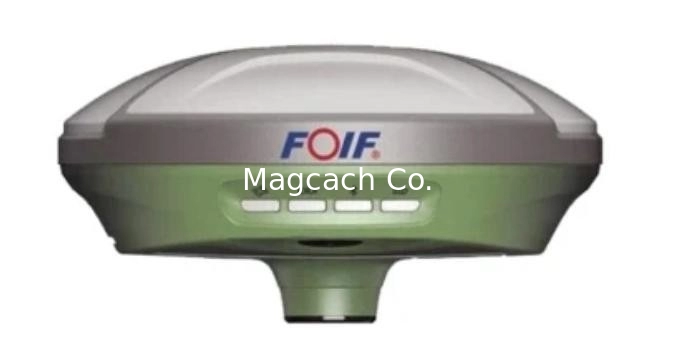

Large Image : High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver

Product Details:

Place of Origin:	China
Brand Name:	FOIF
Certification:	CE
Model Number:	A70 PRO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	with standard packing way
Payment Terms:	Western Union, T/T

Contact Now

Detailed Product Description

Name And Model:	A90 PRO	Horizontal:	2.5mm+0.5ppm RMS
Vertical:	5mm+0.5ppm RMS	Transport Package:	Case And Carton
Channels:	1408	IMU:	Yes
Mian Board:	UM980

High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver Base Rover complete set

High Precision Classic Gnss Foif A70 PRO Rtk Intelligent Receiver

Main Feature:

linux
Linux system, support WebUI web page settings
2. eSIM card
Built-in eSIM, can operate in network mode without inserting a card
3. Full Constellation
336/432/555/800/1408 channels, support seven-star 31 frequency, support Beidou-3
4. Sturdy
Lightweight and miniaturized, full magnesium alloy body design
5. Four-in-one combined antenna
Set GNSS, Bluetooth, WIFI, 4G antenna in one
6. Omnidirectional UHF radio
Built-in receiving station, omnidirectional, wide frequency, multi-protocol compatible with mainstream RTK products in the market
7. The fourth generation inertial navigation tilt measurement system
IMU inertial navigation module, 6-axis 400Hz dynamic output, tilt measurement technology without calibration
8. Built-in large capacity lithium battery
7.2V 6900mAH large-capacity lithium battery, supports USB PD fast charging, supports charging treasure

Model		A70 pro
GNSS	Channels	800 /1408
	Signals	BDS: B1I/B2I/B3I/B1C/B2a/B2b
		GPS: L1C/A/L2P (Y)/L2C/L5
		GLOASS: G1/G2/G3
		GALILEO: E1/E5a/E5b/E6
		QZSS: L1/L2/L5
Accuracy	Static	H: 2.5 mm±1ppm , V: 5 mm±1ppm
	RTK	H: 8 mm±1ppm, V:15 mm±1ppm
	DGNSS	<0.5m
	ATLAS	8cm
System	Initialization Time	8s
	Initialization Reliable	0.999
	Operating System	Linux
	Merrory	8GB, support expanable MisroSD
	Wifi	802.11 b/g/n
	Bluetooth	V2.1+EDR/V4.1Dual,Class2
	Tilt Survey	don't support
Datalink	Audio	support TTS audio broadcast
	Protocol	support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH
	Network	LTE FDD: B1/B3/B5/B8
		LTE TDD: B38/B39/B40/B41
		TD-SCDMA: B34/B39
		CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz
	output format	RTCM2.3, RTCM3.2, CMR, CMR+, ROX TCM3.2, CMR, CMR+, ROX
Physical	Interface	1*5Pin(Power & RS232);
		Type-C: For direct charging, data transmission;
		Sim card slot: Install SIM card
	Button	1 Power Button
	Indication Light	4 Indication Lights
	Size	148mm*62mm
	Weight	800g
Power supply	Battery capacity	Built-in Lithium-ion battery 7.2V/6700mAh.
	Life Timer	Up to 9 hours
	External power source	DC 9-18V, with overvoltage protection
Environment	Work Temporature	-35ºC ~ +65ºC
	Storage Temporature	-55ºC ~ +80ºC
	waterproof&dustproof	IP68
	Humidity	100% anti-condensation
