South Insight V2 Best RTK GPS GNSS Receiver

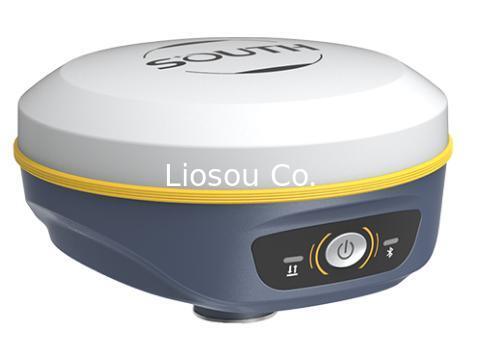

Large Image : South Insight V2 Best RTK GPS GNSS Receiver

Product Details:

Place of Origin:	China
Brand Name:	South
Certification:	CE
Model Number:	Insight V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	with standard packing way
Delivery Time:	3-5 work days after the goods are paid
Payment Terms:	T/T, Western Union, ,Alipay ,Wechat
Supply Ability:	50000 per pc

Contact Now

Detailed Product Description

Model NO.:	Insight V2	Type:	Geodesic Receiver
Channels:	1598	GPS:	L1c/a, L2c, L2p, L5
Glonass:	L1c/a, L1p, L2c/a, L2p	Galileo:	E1,E5a,E5b, E5aitboc*,E6
HS Code:	8526919090

South Insight V2 Best Rtk GPS Gnss Receiver Rtk Survey Machine Cost South Insight V2 V3

South Insight V2 Best RTK GPS GNSS Receiver

Features :

South Insight V2 Best RTK GPS GNSS Receiver

Specification :

GNSS Features	Channels	1598
	GPS	L1C/A, L2C, L2P, L5
	GLONASS	L1C/A, L1P, L2C/A, L2P
	BDS	B1, B2, B3
	GALILEO	E1, E5A, E5B, E5AltBOC*, E6
	SBAS	L1C/A, L5 (Just for the satellites supporting L5)
	IRNSS	L5
	QZSS	L1C/A, L2C, L5
	L-Band	BDS-PPP, GALILEO-HAS*
	Positioning output rate	1Hz~20Hz
	Initialization time	< 10s
	Initialization reliability	> 99.99%
Positioning Precision	Code Differential GNSS Positioning	Horizontal: 0.25 m + 1 ppm RMS
	Code Differential GNSS Positioning	Vertical: 0.50 m + 1 ppm RMS
	GNSS Static	Horizontal: 2.5 mm + 0.5 ppm RMS
	GNSS Static	Vertical: 5 mm + 0.5 ppm RMS
	Static (long observations)	Horizontal: 2.5mm+0.1 ppm RMS
	Static (long observations)	Vertical: 3mm+0.4 ppm RMS
	Real-Time Kinematic	Horizontal: 8 mm + 1 ppm RMS
	(Baseline<30km)	Vertical: 15 mm + 1 ppm RMS
	RTK NTRIP	Horizontal: 8mm+0.5 ppm RMS
	RTK NTRIP	Vertical: 15mm+0.5 ppm RMS
	PPK	Horizontal: 3mm+1 ppm RMS
	PPK	Vertical: 5mm+1 ppm RMS
	SBAS positioning	Typically < 5m 3DRMS
	RTK initialization time	< 10s
	IMU tilt compensation	Additional horizontal pole tip uncertainty typically less than 8mm + 0.7 mm/°tilt down to 30°, 1.8m pole height
	IMU tilt angle	0° ~ 60°
Hardware Performance	Dimension	131mm(φ)× 80mm(H)
	Weight	800g (battery included)
	Material	Magnesium aluminum alloy shell
	Operating temperature	-45ºC ~ +75ºC
	Storage temperature	-55ºC ~ +85ºC
	Humidity	100% Non-condensing
	Waterproof/Dustproof	IP68 standard, protected from long time immersion to depth of 2m
	Waterproof/Dustproof	IP68 standard, fully protected against blowing dust
	Shock/Vibration	Withstand 2 meters pole drop onto the cement ground naturally
	Power consumption	4W
	Power supply	6-28V DC, overvoltage protection
	Battery	Built-in 7.4 V 6800mAh rechargeable
	Battery	Lithium-ion battery
	Battery life	16h (static mode)
		10h (internal UHF base mode)
		12h (rover mode)
	Camera	2 MP
	FOV	75°
WIFI	Modem	802.11 b/g standard
	WIFI hotspot	Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
	WIFI datalink	Receiver can transmit and receive correction data stream via WiFi datalink
Communications	I/O Port	UHF antenna interface
