High Precision Classic Gnss Foif A70 Ar Rtk Intelligent Receiver Base Rover

Name: High Precision Classic Gnss Foif A70 Ar Rtk Intelligent Receiver Base Rover
Brand: FOIF
SKU: A70AR
Price: 1 USD
Availability: InStock
Rating: 4.8 (189 reviews)

High Precision Classic Gnss Foif A70 Ar Rtk Intelligent Receiver Base Rover supplier

Large Image : High Precision Classic Gnss Foif A70 Ar Rtk Intelligent Receiver Base Rover

Product Details:

Place of Origin:	China
Brand Name:	FOIF
Certification:	CE
Model Number:	A70AR

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	with standard packing way
Payment Terms:	Western Union, T/T

Contact Now

Detailed Product Description

Name And Model:	A70 AR	Horizontal:	2.5mm+0.5ppm RMS
Vertical:	5mm+0.5ppm RMS	Transport Package:	Case And Carton
Channels:	1408	IMU:	Yes
Mian Board:	UM980

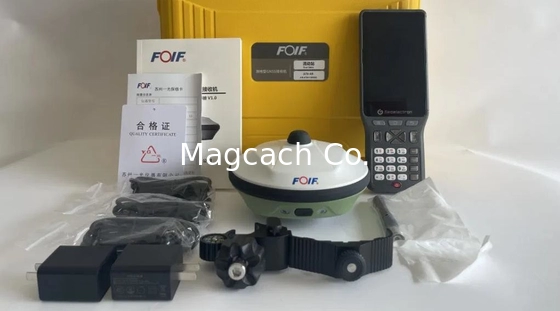

High Precision Classic Gnss Foif A70 AR Rtk Intelligent Receiver Base Rover complete set

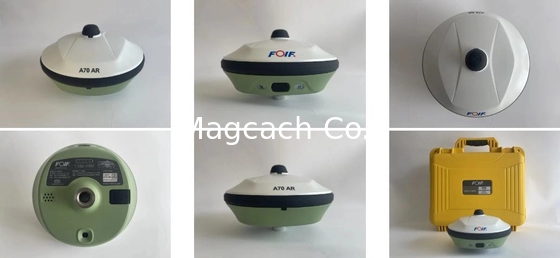

High Precision Classic Gnss Foif A70 Ar Rtk Intelligent Receiver Base Rover

Model		A70 AR
GNSS	Channels	1408
	Signals	BDS: B1I/B2I/B3I/B1C/B2a/B2b
		GPS: L1C/A/L2P (Y)/L2C/L5
		GLOASS: G1/G2/G3
		GALILEO: E1/E5a/E5b/E6
		QZSS: L1/L2/L5
Accuracy	Static	H: 2.5 mm±1ppm , V: 5 mm±1ppm
	RTK	H: 8 mm±1ppm, V:15 mm±1ppm
	DGNSS	<0.5m
	ATLAS	8cm
System	Initialization Time	8s
	Initialization Reliable	0.999
	Operating System	Linux
	Merrory	8GB, support expanable MisroSD
	Wifi	802.11 b/g/n
	Bluetooth	V2.1+EDR/V4.1Dual,Class2
	Tilt Survey	don't support
Datalink	Audio	support TTS audio broadcast
	Protocol	support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH
	Network	LTE FDD: B1/B3/B5/B8
		LTE TDD: B38/B39/B40/B41
		TD-SCDMA: B34/B39
		CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz
	output format	RTCM2.3, RTCM3.2, CMR, CMR+, ROX TCM3.2, CMR, CMR+, ROX
Physical	Interface	1*5Pin(Power & RS232);
		Type-C: For direct charging, data transmission;
		Sim card slot: Install SIM card
	Button	1 Power Button
	Indication Light	4 Indication Lights
	Size	148mm*62mm
	Weight	800g
Power supply	Battery capacity	Built-in Lithium-ion battery 7.2V/6700mAh.
	Life Timer	Up to 9 hours
	External power source	DC 9-18V, with overvoltage protection
Environment	Work Temporature	-35ºC ~ +65ºC
	Storage Temporature	-55ºC ~ +80ºC
	waterproof&dustproof	IP68
	Humidity	100% anti-condensation
