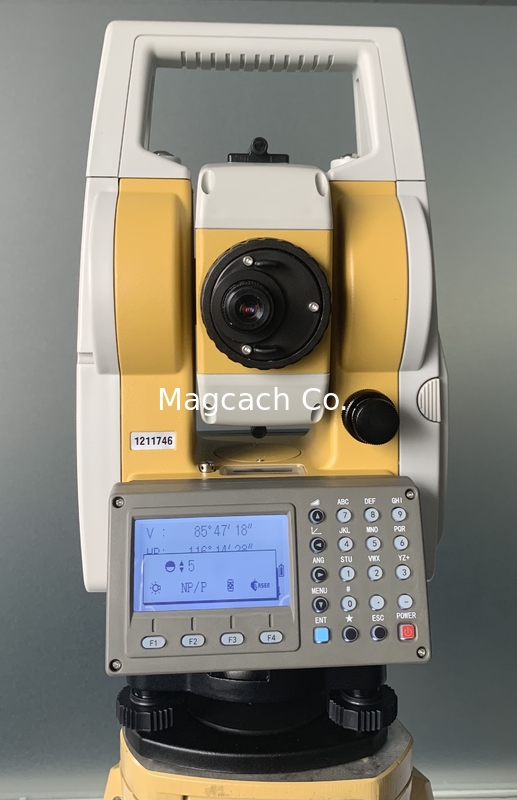

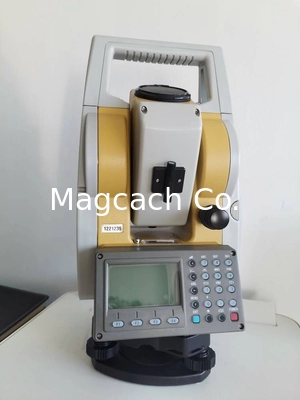

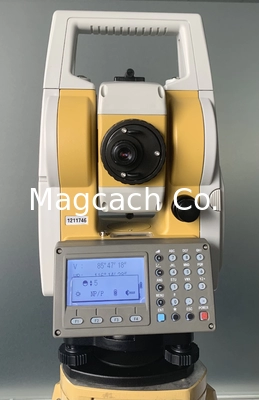

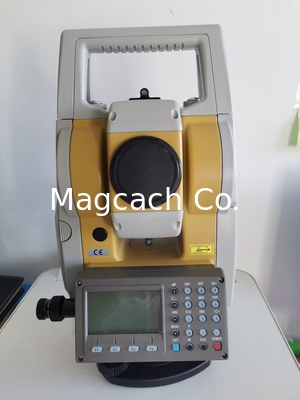

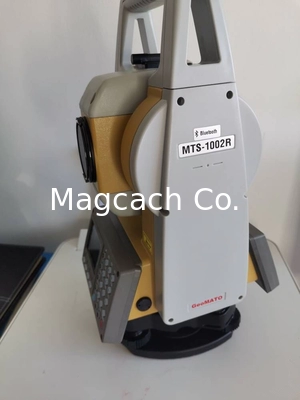

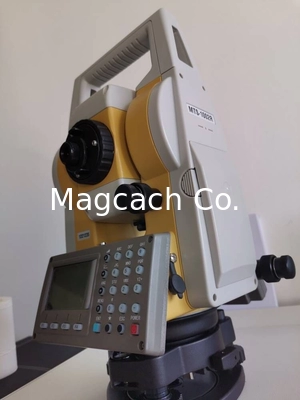

New China Brand Mato MATO MTS1002R Classical Total Station
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Telescope Magnification: | 30x | Telescope Field Angle: | 1°30′ |
|---|---|---|---|
| Telescope Image: | Erect | Distance Measuring Prism Accuracy: | ±(2 Mm+2 Ppm·D) |
| Non-Prism Range: | 400 M-800m | Display: | Dual 160×64pixel |
| Accuracy: | 2" | Reflectorless Distance: | 1000m |
| Bluetooth: | Yes | USB Port: | Yes |
MATO MTS1002R Total Station which can work with Topcon Total Station with bluetooth and USB Port the reflectorless Distance can be reach 1000m
1. The classic model of Sino-Japanese technical cooperation with an operating system that is completely
compatible with the TOPCON GTS1002N
2. Additional features include a bluetooth communication system, prism-free ranging, laser alignment, and other functions
3. Stable, high precision, simple operation.
4. One key for angle measurement / ranging / coordinate / lofting etc.
5. Those that are familiar with the TOPCON complete station should be able to use this model with
complete ease even without a manual guide
| MTS100 Series One Key Survey Engineering Type Total Station | ||||||
|
Main Technical Specification
|
MTS1002R
|
MTS1002R+
|
MTS1002R8
|
MTS1005R
|
||
|
Telescope
|
Magnification | 30× | ||||
| Field angle | 1°30′ | |||||
| Image | Erect | |||||
|
Angle measurement
|
Minimum reading |
1″
|
1″
|
1″
|
1″
|
|
| Accuracy | 2″ | 5″ | ||||
|
Distance measuring
|
Minimum reading |
1 mm
|
1 mm
|
1 mm
|
1 mm
|
|
| Prism accuracy |
±(2 mm+2 ppm·D)
|
|||||
| Reflector accuracy |
±(2 mm+2 ppm·D)
|
|||||
| Non-Prism accuracy |
±(5 mm+3 ppm·D)
|
|||||
| Single prism range |
5000 m
|
7500 m
|
7500 m
|
5000 m
|
||
| Reflector range |
800 m
|
1000 m
|
1000 m
|
800 m
|
||
| Non-Prism Range |
400 m
|
600 m
|
800 m
|
400 m
|
||
|
Data management
|
Memory point |
50,000 points
|
||||
| SD card | Optional | |||||
| USB drive | Optional | |||||
| Bluetooth | Optional | |||||
| Display | Dual 160×64pixel | |||||
|
Working temperature |
- 20 oC - + 55 oC
|
|||||
