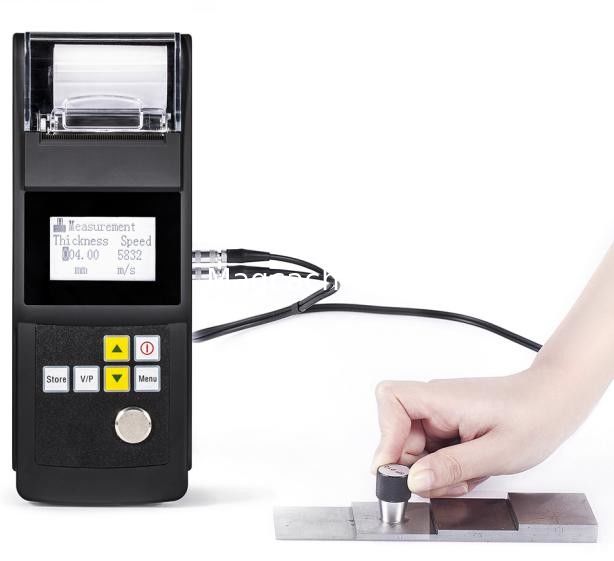

Ultrasonic Thickness Gauge Lee342
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Ultrasonic Thickness Gauge Lee342 |
|---|
Ultrasonic Thickness Gauge Lee342
Functions & Features
●High stability and precision.
●Available software for PC connection, data transmission & analysis, and printing measurement reports.
●With built-in thermal printer.
●Rechargeable Li-ion battery, available for 10 hours working continuously.
●Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.
Measuring Materials
● Adapted to all kinds of materials( with or without coating surface), which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
Technical Parameters
| Model | Leeb342 |
| Measuring range(mm) | 0.7~300 |
| Resolution(mm) | 0.01 |
| Accuracy(mm) |
±(0.5%H+0.01) H refers to the thickness of testing piece |
| Velocity range(m/s) | 1000～9999m/s |
| Storage | 2000 groups |
| Printer |
Build-in High-speed Thermal Printer, Width of printer paper:56.5±0.5mm |
| Dampness | 20%~90% |
| Operating temperature | (-10°C~60°C) |
| Power supply | Rechargeable build-in Li-ion battery |
| Dimensions | 230×86×46mm |
| Weight | 400g |
