|Name:||Coating Thickness Gauge Uee920|

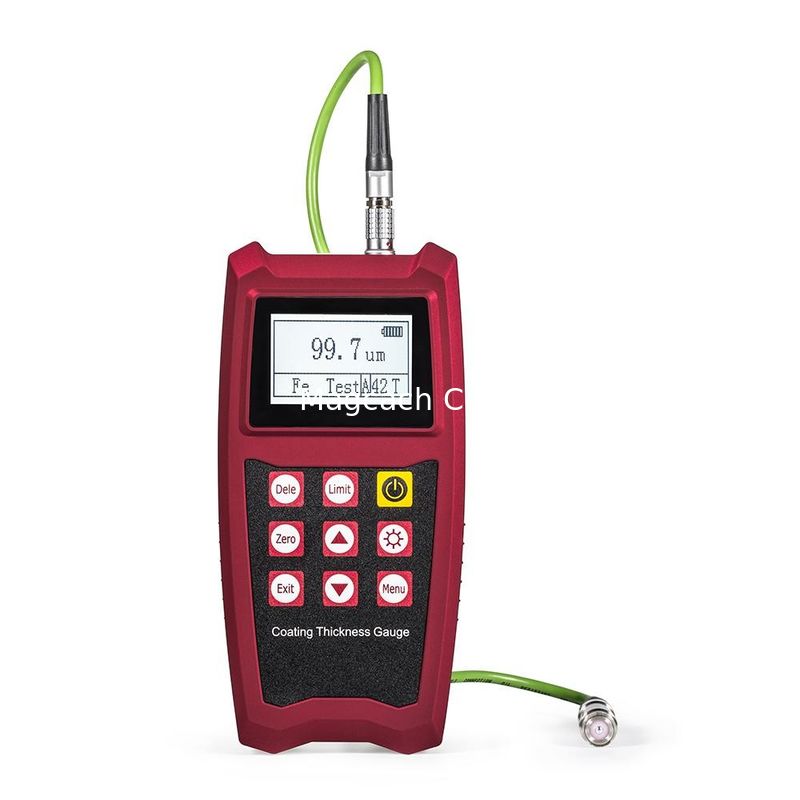

Coating Thickness Gauge Uee920
Functions & Features
●With high quality metal probes.
●Large memory to save 4 types of materials and 1560 testing values.

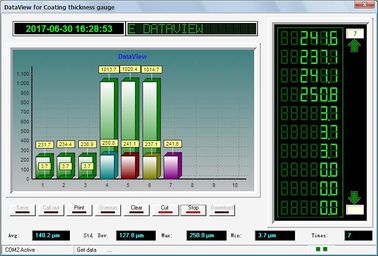

●Software for PC connection and data transmission, analysis.
●Two measuring methods:continuous and single;
●Two working mode: direct and batch;
●Limit setting function.
●Switch off automatically or manually.
●3 ways for easy Calibration: by one specimen, two specimens or five specimens to finish calibration..
●Five statistics: Average, Maximum, Minimum, Testing times, Standard deviation.
●Standard delivery with 5 calibration specimens (48.5m,99.8m,249m,513m,1024m)
●3 years warranty and life-long services
●Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .
●Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
|Measuring principle||Magnetic induction (Fe ) & Eddy current ( NFe)|
|Measuring range (µm)||0~1250μm|
|Accuracy||±(2%H+1) μm; H refers to the thickness of testing piece|
|Minimum resolution (µm)||0.1μm|
|Min curvature of the min area (mm)||Convex1.5 Concave9|
|Diameter of the min area (mm)||Φ7|
|Critical thickness of substrate (mm)||0.5|
|Power supply||2*AA Alkaline battery|
|Standard Configuration||Main Machine, probe*1(Fe or NFe), substrate*1(Fe or NFe), software & USB, Calibration specimens*5, Users’ Manual, Qualified Certificate, AA battery*2, Packing list, Warranty card|
