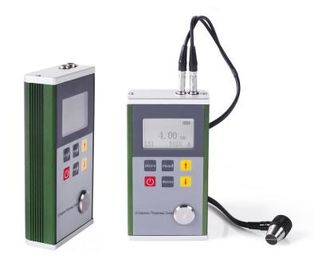

Ultrasonic Thickness Gauge Lee330/331/332
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Ultrasonic Thickness Gauge Lee330/331/332 |
|---|
Ultrasonic Thickness Gauge Lee330/331/332
Functions & Features
High quality metal sheel.
Two display units: mm and inch.
With coupling state indication.
Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.
Measuring Materials
Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
Technical Parameters
| Model | Leeb330 | Leeb331 | Leeb332 |
| Measuring range(mm) | 0.7~300 | ||
| Resolution(mm) | 0.1 | 0.01 | |
| Accuracy(mm) | ±(1%H+0.1) | ±(0.5%H+0.01) | |
| Velocity range(m/s) | 5920 | 1000~9999 | |
| Storage | No | 500 Groups | |
| Shell | Metal | ||
| Operating Temperature | (-10°C~60°C) | ||
| Dampness | 20%~90% | ||
| Dimensions(mm) | 130×70×250 | ||
| Power supply | AAA alkaline batteries | ||
| Weight (g) | 42g | ||
