Coating Thickness Gauge Uee922

China Coating Thickness Gauge Uee922 supplier
Coating Thickness Gauge Uee922 supplier Coating Thickness Gauge Uee922 supplier Coating Thickness Gauge Uee922 supplier Coating Thickness Gauge Uee922 supplier

Large Image :  Coating Thickness Gauge Uee922

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: Uee922

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: With Standard Export Shipping Way
Delivery Time: 3-5work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: Coating Thickness Gauge Uee922

Coating Thickness Gauge Uee922

Coating Thickness Gauge Uee922Coating Thickness Gauge Uee922



Functions & Features

●With high quality metal probes and shell.

●Large memory to save 4 types of materials and 1560 testing values.

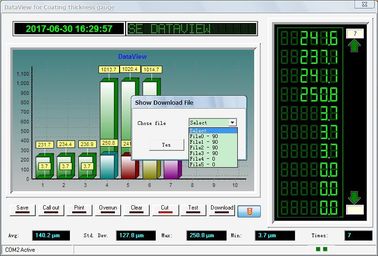

●Software for PC connection and data transmission, analysis.

●Two measuring methods:continuous and single;

●Two working mode: direct and batch;

●Limit setting function.

●Switch off automatically or manually.

●3 ways for easy Calibration: by one specimen, two specimens or five specimens to finish calibration..

●Five statistics: Average, Maximum, Minimum, Testing times, Standard deviation.

●Standard delivery with 5 calibration specimens (48.5m,99.8m,249m,513m,1024m)

●3 years warranty and life-long services


Measuring Materials

●Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .

●Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.


Technical Parameters

Model No. Leeb922
Measuring principle Magnetic induction (Fe ) & Eddy current ( NFe)
Measuring range (µm) 0~1250μm
Probe Changeable
Shell Metal
Accuracy ±(2%H+1) μm; H refers to the thickness of testing piece
Minimum resolution (µm) 0.1μm
Min curvature of the min area (mm) Convex1.5 Concave9
Diameter of the min area (mm) Φ7
Critical thickness of substrate (mm) 0.5
Memory 1560
Dimensions 130*70*30mm
Power supply 2*AA Alkaline battery
Standard Configuration Main Machine, probe*1(Fe or NFe), substrate*1(Fe or NFe), software & USB, Calibration specimens*5, Users’ Manual, Qualified Certificate, Coin screwdriver, AA battery*2, Packing list, Warranty card
Optional Accessories Probes,Specimens
