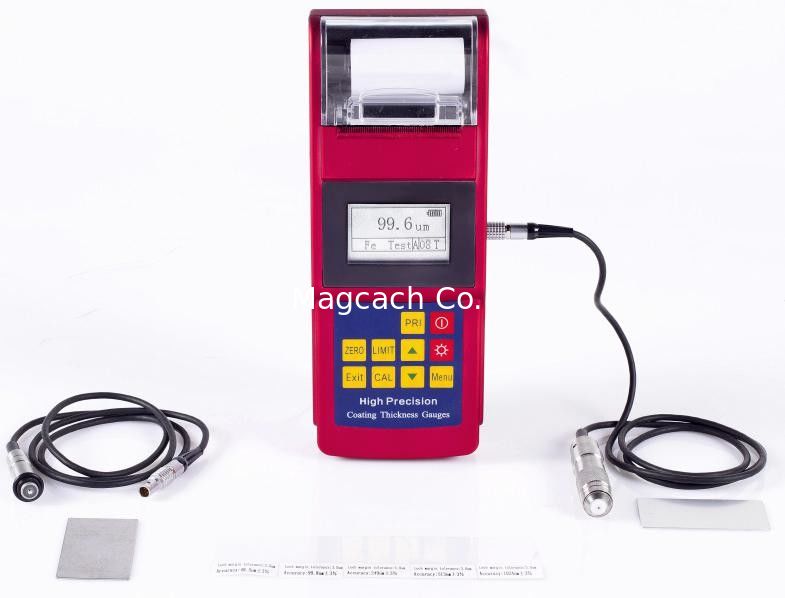

Coating Thickness Gauge - Leeb 262
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Coating Thickness Gauge - Leeb 262 | Measuring Principle: | Magnetic Induction (Fe ) Or Eddy Current ( NFe) |
|---|---|---|---|
| Measuring Range: | 0~1250μm | Accuracy: | ±[（1%)H+1]μm H Refers To The Thickness Of Testing Piece |
| Memory: | 500 Groups Measured Data |

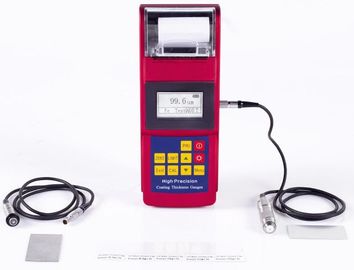

Coating Thickness Gauge - Leeb 262
Functions & Features
High stability and precision.
PC connection software and data transmission, analysis, and printing measurement reports.
With high-speed thermal printer. Width of printer paper: 56.5±0.5mm.
Rechargeable Li-ion battery, available for 10 hours working continuously.
Measuring Materials
Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .
Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
Technical Parameters
| Model | Leeb242 |
| Measuring principle | Magnetic induction (Fe ) or Eddy current ( NFe) |
| Measuring Range | 0~1250μm |
| Probe | Changeable |
| Accuracy |
±[(1%)H+1]μm H refers to the thickness of testing piece |
| Minimum resolution (µm) | 0.1μm |
| Min curvature of the min area (mm) | Convex1.5 Concave9 |
| Diameter of the min area (mm) | Φ7 |
| Critical thickness of substrate (mm) | 0.5 |
| Operating temperature | 0℃~40℃ |
| Magnetic field | No strong magnetic field environment |
| Memory | 500 groups measured data |
| Power supply | Build-in High-speed Thermal Printer |
| Dimensions | 230×86×46mm |
| Weight | 400g |
| Printer | Build-in High-speed Thermal Printer |
| Standard Configuration |
Main unit,5 specimens (48.5m,99.8m,249m,513m 1024m),Charger, paper for printer, Fe or NFe probe & substrate |
| Optional Accessories | Probes,Specimens,Paper for printer |
