Name: | Coating Thickness Gauge - Leeb 230/231/232 | Measuring Range: | 0~1250μm |
---|---|---|---|
Probe: | Changeable | Shell: | Metal |
Accuracy: | ±[(1~3%)H+1] μm H Refers To The Thickness Of Testing Piece | Memory: | 300 Groups Measured Data |

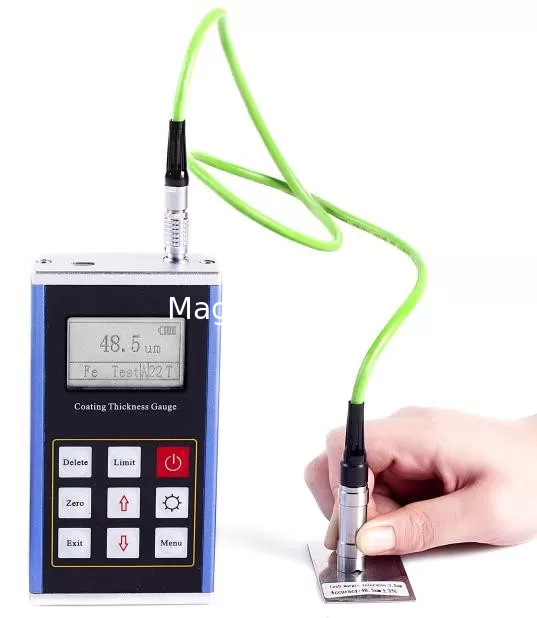

Coating Thickness Gauge - Leeb 230/231/232
Functions & Features
Software for PC connection and data analysis.
High quality metal shell.
With back-light.
Switch off automatically or manually.
Measuring Materials
Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .
Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
Technical Parameters
Model | Leeb230 | Leeb231 | Leeb232 |
Measuring principle | Fe | NFe | Fe & NFe |
Measuring Range | 0~1250μm | ||

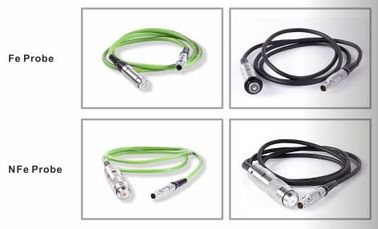

Probe | Changeable | ||
Shell | Metal | ||
Accuracy |
±[(1~3%)H+1] μm H refers to the thickness of testing piece |
||
Minimum resolution (µm) | 0.1μm | ||
Min curvature of the min area (mm) | Convex1.5 Concave9 | ||
Diameter of the min area (mm) | Φ7 | ||
Critical thickness of substrate (mm) | 0.5 | ||
Memory | 300 groups measured data | ||
Dimensions | 115×70×30mm | ||
Power supply | AAA Alkaline battery | ||
Standard Configuration |
Main Machine,5 calibration specimens (48.5m,99.8m,249m,513m 1024m),1 probe & substrate (2 probes & substrates for Leeb232). |
||
Optional Accessories | Probes,Specimens |
