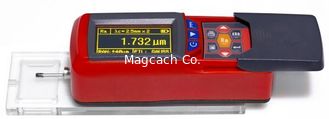

Surface Roughness Tester Leeb432

China Surface Roughness Tester Leeb432 supplier
Surface Roughness Tester Leeb432 supplier Surface Roughness Tester Leeb432 supplier Surface Roughness Tester Leeb432 supplier

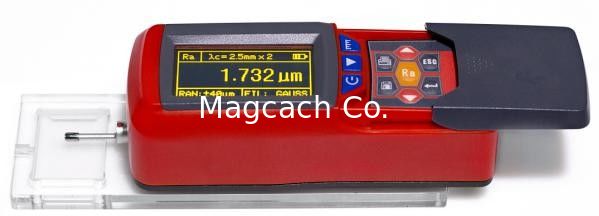

Large Image :  Surface Roughness Tester Leeb432

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: Leeb432

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: With Standard Export Shipping Way
Delivery Time: 3-5work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: Surface Roughness Tester Leeb432 Measuring Range: Ra:0.005-16μm Rz:0.02-160μm
Maximum Drive Stroke Length: 17.5mm/0.7inch Resolution: 0.001μm
Memory: 100 Groups Weight: 440g

Surface Roughness Tester Leeb432



Surface Roughness Tester Leeb432Surface Roughness Tester Leeb432



Functions & Features



Five optional sensors for measuring special shaped work-pieces.

DSP chip controlled achieves high accuracy and fast testing speed.

Matrix LCD screen displays all parameters and data.

13 parameters and 4 filtering methods: RC, PC-RC, GAUSS and D-P.

High quality with ISO/ DIN/ CE/ JIS/ FCC standards.

Memory: 100 groups of measuring data.

Power supply: 3.7V rechargeable Li-ion battery.

Standard Sensor: diamond stylus with radius 5μm, force 4mN(0.4gf), and angle 90°

Available PC software for data management and Excel reports.

Optional printer connecting by USB.



Application

● It can measure the roughness of various machined parts, such as plane surface, bevel surface, outer cylindrical surface, curved surface, small hole, groove and car axle etc. ● Application for Surface roughness measurement of metal and non-metal parts and workpiece, including a variety of machining parts, machining manufacturing, testing, commodity inspection departments,it is especially suitable for on-site inspection of large workpiece and production lines and the inspection, measurement, commodity inspection and other departments of the outbound verification,no damage to the workpiece.



Technical Parameters

Model Leeb432
Measuring range Ra:0.005-16μm Rz:0.02-160μm
Maximum drive stroke length 17.5mm/0.7inch
Resolution 0.001μm
Roughness parameters Ra,Ry,Rq,Rz,Rt,RSm,RS,Rp,Rv,R3z,RSk,Rmax,Rmr
Filtering methods RC, PC-RC, GAUSS, D-P,
Sample length (lr) 0.25mm, 0.8mm, 2.5mm/±20μm,±40μm,±80μm
Evaluation length(ln) 1.25mm, 4mm,5mm/Option from(1-5)L
Indication error ≤±8%
Indication variability <6%
Memory 100 Groups
Dimension (mm) 119×47×65mm
Weight 440g
Operation environment 0 ºC -40 ºC
Standard configuration Main Unit,Standard sensor,Calibration block, Supporting platform, Power charger, Manual,Certificate, Warranty card, PC analysis software
Optional Accessories Measurement Platforms , optional sensors, printer
