Portable Hardness Tester Uee912
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Portable Hardness Tester Uee912 | Measuring Range: | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
|---|---|---|---|
| Hardness Parameter: | HL, HRC,HRB, HS,HB,HV | Accuracy: | ±6HLD |
| Memory: | 600 Groups |

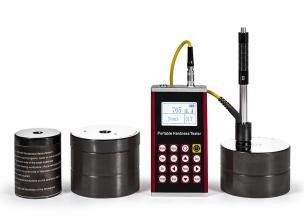

Portable Hardness Tester Uee912
Functions & Features
●High quality metal shell
●Precise measuring performance
●Automatically identify 7 types of Impact devices for special application
●Direct calibrate on HL,HRC,HB, and freely switch to 6 different hardness scales
●Test at any angle, even upside down
●Large LCD screen with back-light, showing all functions and parameters
●Conversion to tensile strength (U.T.S)
●PC Software for data transmission, analysis and measurement reports printing
●3 years warranty and life-long services
Measuring Materials
● Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin (bronze), copper , forged steel and other special metal materials.
Technical Parameters
| Model | Uee912 |
| Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
| Hardness parameter | HL, HRC,HRB, HS,HB,HV |
| Accuracy | ±6HLD |
| Memory | 600 groups |
| PC Connection | Available |
| Battery | 2*AA |
| Operating Temperature | -20℃~+60℃ |
| Dimensions | 130×70×30mm |
| Weight | 300g |
| Standard Configuration | Main unit, Impact Device type D, Calibration block, Small supporting ring, USB cable, Software, Backup accessories(Impact ball*1, Cable*1, Spanner *1), Cleaning brush, Coin screwdriver, Operation manual, Certificate |
| Optional Accessories | Optional Impact Devices(D,DC,DL,D+15,G,C,E), Shaped support rings, Testing blocks |
