Portable Hardness Tester Uee910

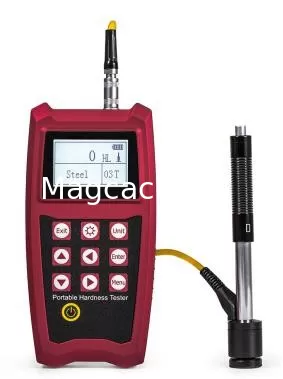

Large Image : Portable Hardness Tester Uee910

Product Details:

Place of Origin:	China
Brand Name:	Magcach
Certification:	CE
Model Number:	Uee910

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	With Standard Export Shipping Way
Delivery Time:	3-5work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200000 per year

Contact Now

Detailed Product Description

Name:	Portable Hardness Tester Uee910	Measuring Range:	(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness Parameter:	HL, HRC,HRB, HS,HB,HV	Accuracy:	±6HLD
Memory:	600 Groups

Portable Hardness Tester Uee910

Portable Hardness Tester Uee910

Functions & Features

● High quality and precision.

● Automatically identify 7 types of Impact devices for special application.

● Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL.

● Direct calibration on HL,HRC,HB.

● PC Software for data transmission, analysis and measurement reports printing.

● Test at any angle, even upside down.

● Large LCD screen with back-light, showing all functions and parameters.

● Upper and lower limit and sound alarm.

● Conversion to tensile strength (U.T.S).

● 3 years warranty and life-long services.

Measuring Materials

● Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel and other special metal materials.

Technical Parameters

Model	Uee910
Measuring Range	(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter	HL, HRC,HRB, HS,HB,HV
Accuracy	±6HLD
Memory	600 groups
PC Connection	Available
Battery	2*AA
Operating Temperature	-20℃~+60℃
Dimensions	163×78×33mm
Weight	240g
Standard Configuration	Main unit, Impact Device type D, Calibration block,Small supporting ring, USB cable, Software, Backup accessories(Impact ball1, Cable1, Spanner *1), Cleaning brush,Operation manual,Certificate.
Optional Accessories	Optional Impact Devices(D,DC,DL,D+15,G,C,E), Shaped support rings, Testing blocks
