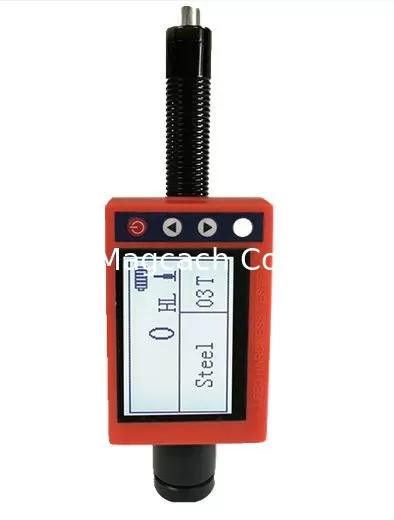

Portable Hardness Tester Leeb180D/ 180G/ 180DL

Large Image : Portable Hardness Tester Leeb180D/ 180G/ 180DL

Product Details:

Place of Origin:	China
Brand Name:	Magcach
Certification:	CE
Model Number:	Leeb180D/ 180G/ 180DL

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	With Standard Export Shipping Way
Delivery Time:	3-5work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200000 per year

Contact Now

Detailed Product Description

Name:	Portable Hardness Tester Leeb180D/ 180G/ 180DL	Calibration:	Direct Calibration On HL,HRC,HB.
Measuring Range:	(150-960)HLD,(17.1～68.5)HRC,(77-651)HB,(83～976)HV,(26.4～99.5)HS, (59.6～99.6)HRB	Hardness Parameter:	HL、HRA、HRC、HRB、HB、 HV、HS、HSD
Accuracy:	±6HLD（HLD=760）	Indication Repeatability:	±6HLD（HLD=760）

Portable Hardness Tester Leeb180D/ 180G/ 180DL

Portable Hardness Tester Leeb180D/ 180G/ 180DL

Functions & Features

Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL

Direct calibration on HL,HRC,HB.

Large LCD screen with back-light, showing all functions and parameters

Upper and lower limit and sound alarm

Conversion to tensile strength (U.T.S)

Measuring Materials

Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.

Technical Parameters

Model	Leeb180D	Leeb180G	Leeb180DL
Calibration	Direct calibration on HL,HRC,HB.
Main application	Normal Test	For casting and forging of large,thick heavy and surface is rough	For slender, narrow or long holes
Measuring Range	(150-960)HLD,(17.1～68.5)HRC,(77-651)HB,(83～976)HV,(26.4～99.5)HS, (59.6～99.6)HRB
Hardness parameter	HL,HRA,HRC,HRB,HB, HV,HS,HSD
Accuracy	±6HLD(HLD=760)
Indication repeatability	±6HLD(HLD=760)
Impact Device	Impact Device		D,DC,DL,D+15,G,C,E
PC Connection	No		Available
Operation Direction	360°
Fixed impact device	110g	260g	130g
Standard Configuration	Main body,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Calibration block,Certificate.
Optional Accessories	Shaped support ring,Calibration block,PC software
