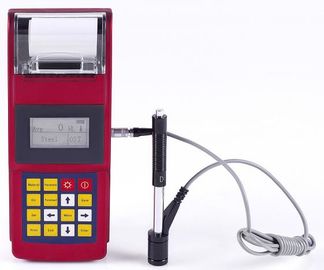

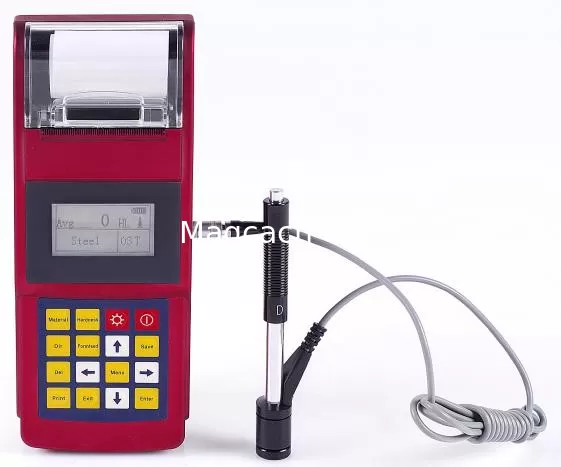

Portable Hardness Tester Leeb160
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Portable Hardness Tester Leeb160 | Measuring Range: | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
|---|---|---|---|
| Hardness Parameter: | HL, HRC,HRB, HS,HB,HV | Accuracy: | ±6HLD/ ±1.5HRC （L=760） |
Portable Hardness Tester Leeb160
Functions & Features
High stability and precision
With built-in thermal printer
Direct calibrate on HL,HRC,HB, and freely switch to 8 different hardness scales
Automatically identify 7 types of Impact devices for special application
Test at any angle and direction, even upside down
Conversion to tensile strength (U.T.S)
PC Software for data transmission, analysis and measurement reports printing
Measuring Materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin (bronze), copper , forged steel
Technical Parameters
| Model | Leeb160 |
| Measuring Range |
(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
| Hardness parameter | HL, HRC,HRB, HS,HB,HV |
| Accuracy | ±6HLD/ ±1.5HRC (L=760) |
| Display | LCD with back-light |
| Memory | 600 groups |
| PC Connection | Available |
| Printer |
Build-in High-speed Thermal Printer (printer paper : 44.5±0.5mm) |
| Battery | Rechargeable Li-ion battery |
| Operating Temperature | -20℃~+60℃ |
| Dimensions | 230×86×46mm |
| Impact Device Type | D,DC,DL,D+15,G,C,E |
| Weight | 450g |

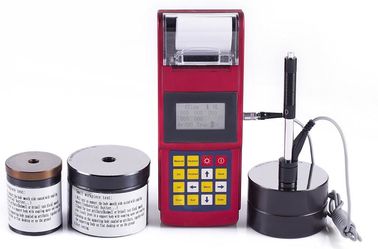

| Standard Configuration |
Main unit,Impact Device type D,Calibration block,Power adapter,Cleaning brush, Small supporting ring,Operation manual,Certificate,paper of Printer. |
| Optional Accessories | Optional Impact Devices,Shaped support ring,Paper for printer |
