Portable Hardness Tester Leeb130
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Portable Hardness Tester Leeb130 | Measuring Range: | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
|---|---|---|---|
| Hardness Parameter: | HL, HRC,HRB, HS,HB,HV | Accuracy: | ±6HLD/ ±1.5HRC （L=760） |

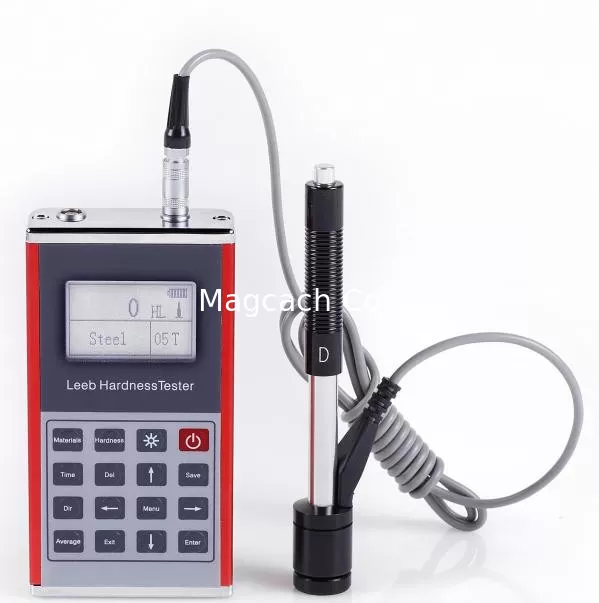

Portable Hardness Tester Leeb130
Functions & Features
High quality metal shell.
Automatically identify 7 types of Impact devices for special application
Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
Direct calibration on HL,HRC,HB.
Test at any angle, even upside down
Large LCD screen with back-light, showing all functions and parameters
Conversion to tensile strength (U.T.S)
Measuring Materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin (bronze), copper , forged steel
Technical Parameters
| Model | Leeb130 |
| Measuring Range |
(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
| Hardness parameter | HL, HRC,HRB, HS,HB,HV |
| Accuracy | ±6HLD/ ±1.5HRC (L=760) |
| Display | LCD with back-light |
| Memory | 350 groups |
| PC Connection | Available |
| Battery | 2 AAA |
| Operating Temperature | -20℃~+60℃ |
| Dimensions | 130×70×25mm |
| Impact Device Type | D,DC,DL,D+15,G,C,E |
| Weight | 300g |
| Standard Configuration |

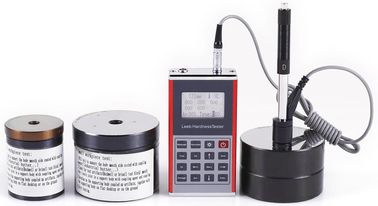

Main unit,Impact Device type D,Operation manual, Small supporting ring,Cleaning brush, Calibration block,Certificate. |
| Optional Accessories | optional Impact Devices,Shaped support ring,Software |
