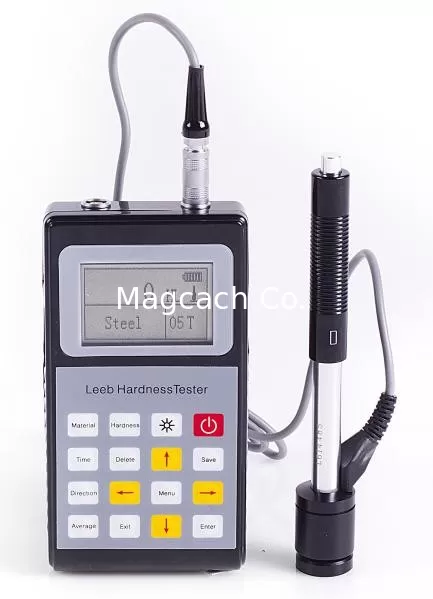

Portable Hardness Tester Leeb110/120
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Portable Hardness Tester Leeb110/120 | Measuring Range: | 170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
|---|---|---|---|
| Hardness Parameter: | HL, HRC,HRB, HS,HB,HV | Accuracy: | ±6HLD/ ±1.5HRC （L=760） |
Portable Hardness Tester Leeb110/120
Functions & Features
Automatically identify 7 types of Impact devices for special application
Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
Direct calibration on HL,HRC,HB.
Test at any angle, even upside down
Large LCD screen with back-light, showing all functions and parameters
Upper and lower limit and sound alarm
Conversion to tensile strength (U.T.S)
Measuring Materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel and other special metal materials.
Technical Parameters
| Model | Leeb110 | Leeb120 |
| Measuring Range |
170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
|
| Hardness parameter | HL, HRC,HRB, HS,HB,HV | |
| Accuracy | ±6HLD/ ±1.5HRC (L=760) | |
| Memory | 350 groups | |
| Impact Device | Fixed D | D,DC,DL,D+15,G,C,E |
| PC Connection | No | Available |
| Battery | 2*AAA | |
| Operating Temperature | -20℃~+60℃ | |
| Dimensions | 129×68×25mm | |
| Weight | 230g | 240g |
| Standard Configuration |
Main unit,Impact Device type D,Operation manual, Small supporting ring,Cleaning brush, Calibration block,Certificate. |
|
| Optional Accessories | optional Impact Devices(only for Leeb120), Shaped support ring | |
