Topcon RTK GPS GR5 RTK GPS

Large Image : Topcon RTK GPS GR5 RTK GPS

Product Details:

Place of Origin:	China
Brand Name:	Topcon
Certification:	CE
Model Number:	Topcon RTK GPS GR5 RTK GPS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	with standard packing way
Delivery Time:	3-5 work days after the goods are paid
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000000 per pc

Contact Now

Detailed Product Description

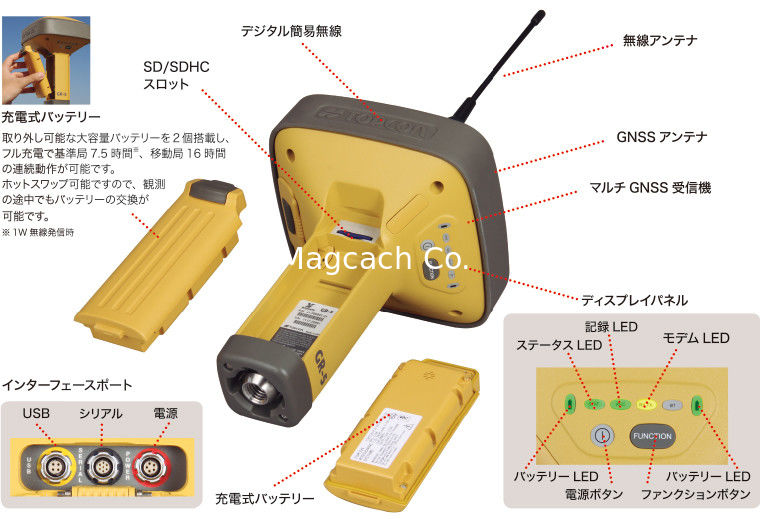

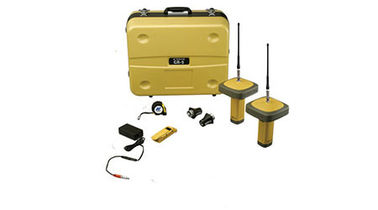

Topcon RTK GPS Hiper GR5 RTK GPS

Topcon RTK GPS GR5 RTK GPS

Features:

216 Universal Tracking Channels

G3 Tracking Technology (GPS/GLONASS/GALILEO)

Advanced Fence Antenna™ Technology - Unsurpassed tracking and performance

Sophisticated, High Accuracy RTK technology with position updates up to 100Hz

Integrated Dual Communication System with multiple Radio and Cellular combinations

MAGNET software compatible

32GB SDHC storage support

Dual hot-swappable batteries

Specifications
TRACKING
Number of Channels	216 Universal Channels
Signals Tracked	G3 Technology – GPS, GLONASS and GALILEO*
WAAS/EGNOS/MSAS
WAAS/EGNOS/MSAS	Yes
ACCURACY
RTK	H: 10 mm + 1 ppm
	V: 15 mm + 1 ppm
Static/Fast Static	H: 3mm + 0.5ppm
	V: 5mm + 0.5ppm
COMMUNICATIONS
Optional Radio Type	Integrated UHF TX/RX, or 915MHz Spread Spectrum
Base Radio Output	0.01 - 1.0W, user selectable
Cellular Communications	Integrated GSM/GPRS or CDMA****
Wireless Communications	Integrated Bluetooth® 2.0 compliant
DATA & MEMORY
Memory	Internal, Removable SD/SDHC Memory Card
Data Update/Output Rate	1Hz – 100Hz Selectable***
Real Time Data Output	TPS, RTCM SC104, CMR, CMR+
ASCII Output	NMEA 0183 version 2.x and 3.0
ENVIRONMENTAL
Enclosure	Magnesium I-Beam Housing
Operating Temperature	-40 to +70°C**
Dust/Water Protection	IP66
Shock Rating	2 meter pole drop to concrete
	IEC 60068-2-29, IEC 60068-2-27
Vibration Rating	SAE J1211, Section 4.7
	MIL-STD 202G, Method 214A
