XS-100 Rebar Corrosion Detection

China XS-100 Rebar Corrosion Detection supplier
XS-100 Rebar Corrosion Detection supplier XS-100 Rebar Corrosion Detection supplier

Large Image :  XS-100 Rebar Corrosion Detection

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: XS-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: With Standard Export Shipping Way : There are 1pc into one case and then are packed into one Carton
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: XS-100

XS-100 Rebar Corrosion Detection


XS-100 Rebar Corrosion Detection




1.Easy to operate, fast and accurate read. The result is displayed with numbers or graphics.

2.Displays rebar corrosion degree with 9-level grey or colorful graphics

3.Measured data is inputted to PC software from USB interface.

4.Easy to operate, have concise software interface, have powerful analytical processing, can obtain testing report directly.


Brief introduction

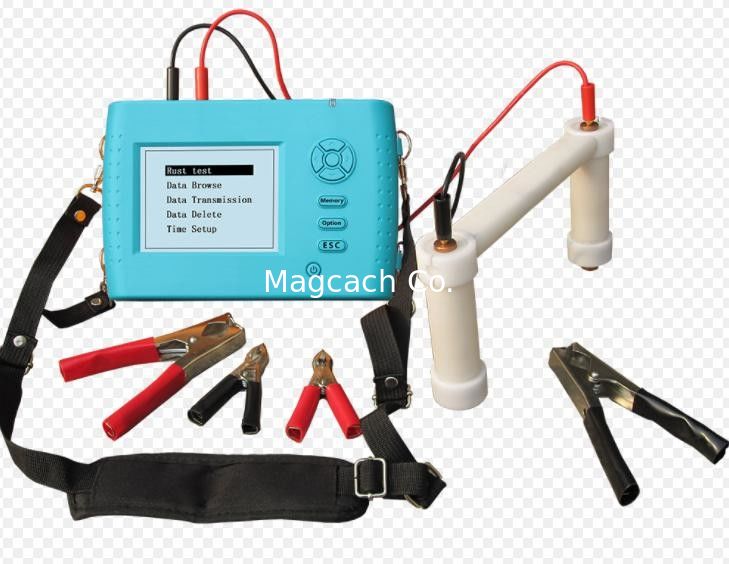

XS-100 rebar corrosion detection is NDT instrument which tests rebar corrosion in the concrete structure. Using electrochemistry method, do the functions for corrosion detection, data analysis, storage and output etc. It is a detection instrument which is handed, measurement accurately and easy to use.


Technical Specification

Items SPEC
Potential electrode Φ37X127mm
Electrode weight 200g
Power supply Alkaline cell X 6
Potential measurement range ±1000mv
Test Accuracy 1mv
Distance of test point 0 - 1000mm
Available capacity 50000 test points,5000test areas
Work temperature range -10℃ - 40℃
Size 220×145×60mm
