CJ-10 Nonmetal ultrasonic detector

China CJ-10 Nonmetal ultrasonic detector supplier
CJ-10 Nonmetal ultrasonic detector supplier CJ-10 Nonmetal ultrasonic detector supplier

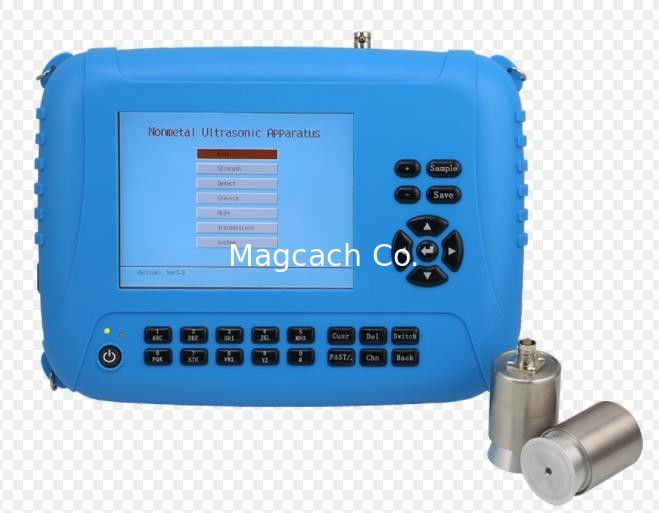

Large Image :  CJ-10 Nonmetal ultrasonic detector

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: CJ-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: With Standard Export Shipping Way : There are 1pc into one case and then are packed into one Carton
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: CJ-10 Nonmetal Ultrasonic Detector

CJ-10 Nonmetal ultrasonic detector





CJ-10 Nonmetal ultrasonic detector



Purpose

☆ Testing of building foundation piles by cross-hole sonic logging;

☆ Inspection of concrete defects by ultrasonic method,such as uncompacted ,cellular, hole area.

☆ Detecting defects of one hole by one trigger two receive.

☆ Testing dynam performance of geotechnical investigation,rock,concrete etc.



Specification

☆ Technology code for testing of building foundation piles JGJ 106 —2003

☆ Technical Specification of Dynamic Pile Tests for Highway Engineering JTG/TF81-01-2004

☆ Technology specification for inspection of concrete defects by ultrasonic method CECS 21: 2000

☆ Technical specification for geotechnical investigation method GB50021—2001



Performance

☆ High efficient testing. Lifting speed is more than 60m/s.( 20 cm distance ).

☆ Display the test data graphically. User can watch analyze result directly;

☆ Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency;

☆ Humanized software design. Software design apply to User and construction plant. its help information ensure user handle easily;

☆ Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking rebound apparatus directly,and get strength of concrete in time. The functions apply for national patent.

☆ Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects

☆ Can supply smooth power for radial energy transducer needless external power.

☆ Standard USB storage with big capacity.

☆ Interior lithium battery supply power for apparatus work more than 6 hours.

☆ Portable, small, light apparatus (1.75Kg).

☆ Extending function for testing thickness of concrete by impacting echo method.

☆ Professional and powerful analysis software on windows system. It can export the data to Excel or word for advanced analysis



Technical Data

Item Specifications Item Specifications
Main Control Unit high-performance Embed Computer Display 640×480High brightness TFT Panel
Input Keyboard storage 1G(Internal)+2G(U-Disk)
interface USB
Receive Channel One Max Sample Data length 64k
Trigger Mode

Continuous Trigger,

External Trigger

Trigger Voltage(V) 65,125,250,500,1000 selectable
Receive sensitivity ≤30μv Amplifier gain 82dB
Amplifier bandwidth 5KHz~500 kHz Sample Periods 0.05μs~6.4μs,8 grades electable
Sound time accuracy 0.05μs Amplifier resolution 0.39%
Power Interior lithium battery,work more than 6 hours Size 260 mm×185 mm×60 mm
External lithium battery,work more than 6 hours(select Weight 1.75 kg(include lithium battery)
DC 12V Temperature -10℃—+40℃
AC 100V~240V,50/60Hz
