GW50(+) Reinforcement position tester

China GW50(+) Reinforcement position tester supplier
GW50(+) Reinforcement position tester supplier GW50(+) Reinforcement position tester supplier

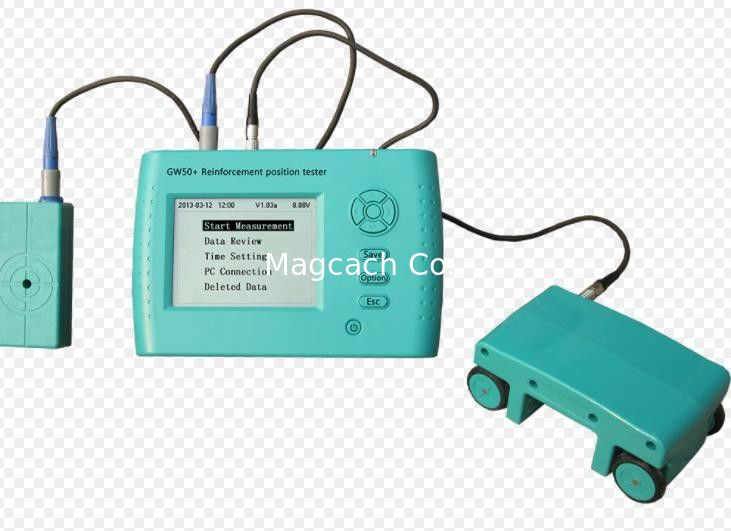

Large Image :  GW50(+) Reinforcement position tester

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: GW50(+)

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: With Standard Export Shipping Way : There are 1pc into one case and then are packed into one Carton
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: GW50(+) Reinforcement Position Tester Bar Diameter Application Range(mm): Φ6 - 50
Maximum Permissible Error Of Bar Diameter: ≤±1 The First Measuring Range (mm): 6 - 90
The Second Measuring Range (mm): 7-180

GW50(+) Reinforcement Position Tester



GW50(+) Reinforcement position tester





Features



investigation depth could reach 180mm

Single comprehensive probe. No need to replace during test.

back-lit screen let instrument can be normal used under the condition of insufficient light

Machine software is complete .The report could be printed automatically connecting with computer

Work environment condition

No strong alternating electromagnetic field

No corrosive gas in the air.

Avoid larger vibration and impact

Avoid the LCD panel contact with sunlight directly



Product usage



Testing concrete cover thickness

Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.

Estimation bar diameter

Detection of Cable and Plumbing pipe



Technical Specification

Bar diameter application range(mm) Φ6 - 50
Maximum permissible error of Bar diameter ≤±1
Cover thickness measuring range
The first measuring range (mm) 6 - 90
The second measuring range (mm) 7-180
The maximum error of cover thickness
The first measuring range (mm) The second measuring range (mm)
6 - 59 7 - 79 ≤±1
60 - 69 80 - 119 ≤±2
70 -90 120 - 180 ≤±4
Standard Delivery Optional Accessory

Main unit, Software

USB connecting cable

Probe

Probe cable

Manual

Warranty card

Carry case

1

1

1

1

1

1

1

Scan car

Car cable
