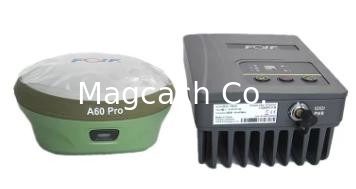

China Brand FOIF RTK GNSS GPS A60PRO UM980 Main board tilt sensor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name And Model: | A60pro | Horizontal: | 2.5mm+0.5ppm RMS |
|---|---|---|---|

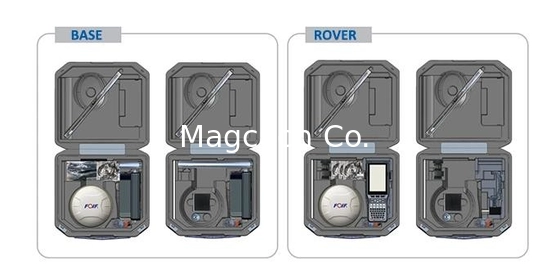

| Vertical: | 5mm+0.5ppm RMS | Transport Package: | Case And Carton |
| Channels: | 1408 | IMU: | Yes |
| Mian Board: | UM980 |

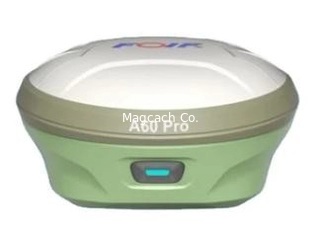

1408 Channels GPS Rtk Receiver Foif A60 PRO Land Surveying Dual Frequency Land Surveying Support Imu Tilt Surveying
Main Feature :
1. Linux system, support WebUI page settings
2. 800 channels, support Beidou-3 (ACEBOC), star chain endurance, star station difference

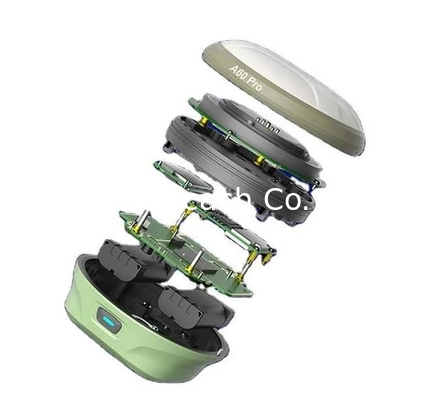

3. Lightweight and miniaturized, all-magnesium alloy body design
4. Four-in-one combination antenna, integrating GNSS, Bluetooth, WIFI, and 4G antennas
5. Colorful LED design, mixed multi-color breathing lights show receiver status
6. Large-capacity lithium battery, comes with 4 battery indicator lights, supports TYPE-C fast charging
7. Built-in Esim, free traffic for three years, network mode operation can be performed without inserting a card
8. New algorithm tilt module, tilt measurement technology without calibration
9. Built-in transceiver integrated radio, full protocol, full frequency, full compatibility
Product Parameters
| A60 PRO | ||
| GNSS | Channels | 800/1408 |
| Satellite Signals | GPS:L1 C/A,L1P,L1C,L2C,L2P,L5 | |
| BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC | ||
| GLONASS: G1, G2, G3 | ||
| Galileo: E1, E5a, E5b, ALTBOC, E6 | ||
| QZSS: L1C/A, L1C, L2C, L5, LEX | ||
| SBAS:L1,L5 | ||
| L-Band: Optional | ||
| Update Rate | 10Hz standard, 20Hz optional | |
| Accuracy | Static | H: ±(2.5+0.5×10-6D)mm ; V: ±(5+0.5×10-6D)mm |
| RTK | H: ±(8+1×10-6D)mm; V: ±(15+1×10-6D)mm | |
| Power Supply | Battery Capacity | Built-in battery, 4.2V, 6800mAh*2 |
| Working Duration | lasts for 10h (rover) | |
| Input Voltage | 9~28V DC | |
| System | Operating System | Linux+A7 |
| Memory | 8G, no TF card slot | |
| Bluetooth | V5.0+EDR, downward compatibility/ BLE | |
| WIFI | 802.11 b/g/n | |
| Network | All Netcom 4G | |
| LTE FDD: B1/B3/B5 LTE TDD: B34/B38/B39/B40/B41 WCDMA: B1/B8TD-SCDMA: B34/B39CDMA: BC0 GSM: 900/1800MHz |
||
| Radio | TRM101,410-470MHz | |
| RTK Fusion | Positioning accuracy of 30° bar tip within 2cm and 60° bar tip within 5cm Note: 1.8 m bar height |
|

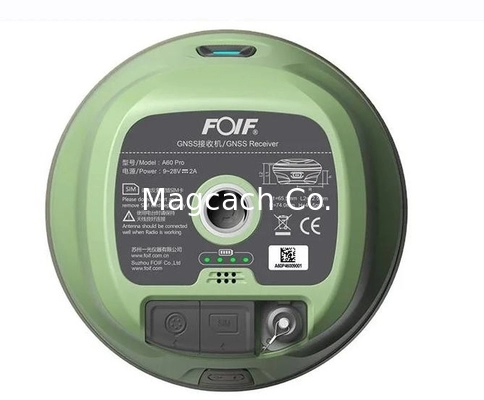

| Data link | TNC | used to connect inner radio antenna |
| Type-C Port | used for charge and date transmission | |
| 5 Pin Port | Used to connect external power and external radio | |
| Esim | ESim embedded, no need to insert a card can be implemented network mode operation | |
| SIM Card Slot | Dual-card slot compatible design, embedded ESIM, external SIM card.If the SIM card is inserted, it will use the SIM card by default. If the SIM card is not inserted, it will use ESim by default.At the same time, the user can also choose the use scheme | |
| Physical | 148mm*74.5mm, weights about 1.0kg | |
| Voice | supprt | |
| Screen | Smart Touch Screen, work as a controller | |
| Turn on/ off | 1) Long press for 3 seconds to turn off the device. (2) Short press once to broadcast the current state, and the four battery level indicator lights will be on for 5s according to the battery level and then off. Shutdown state: (1) Long press for 3 seconds to start the device (2) Shutdown and charging state: four battery level indicators. (3) Short press once (slightly longer than in the power-on state) : the four battery level indicator lights will be on for 5s and then go off. |
|
| Breathing Light Red Red always bright: self - check fault Breathe in Red: Charge less than 25% Red flash: abnormal communication on board card Green 5S one time (500ms green) overlay mixed color: data records, including static, base station, mobile station data records purple Chang Liang: Fixed solution Blink: data link receiving and sending Breathing: single point, successful positioning |
||
| Flash: Not positioned Purple turns blue when bluetooth is connected Yellow boot in.. Yellow flicker self check.. The yellow breath firmware is being upgraded.. Red-green-blue cycle built-in module upgrade...Including network module firmware, board card firmware, sensor firmware, radio firmware 4 electric quantity indicator lights In the charging state, the light flashes according to the remaining charge |
||
| Environment | Work Temperature | -30ºC ~ +65ºC |
| Storage Temperature | -40ºC ~ +80ºC | |
| Down Fall | Resistance to 2m fall with pole (hardwood ground), 1.2m free fall. | |
| Waterproof & dustproof | IP67 | |
| Humidity | anti-condensation 100% |
|
