CHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station

China CHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station supplier
CHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station supplier CHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station supplier CHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station supplier CHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station supplier

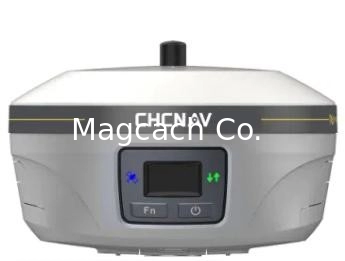

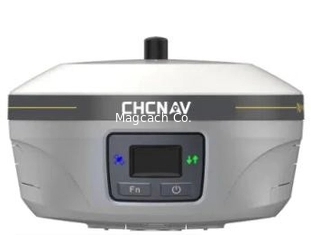

Large Image :  CHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station

Product Details:

Place of Origin: Shanghai China
Brand Name: CHC
Certification: CE
Model Number: B5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 2000/complete set
Packaging Details: with standard packing way
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 5000pc per year
Contact Now
Detailed Product Description
Model: B5 Name: High Quality Surveying Instrument CHC T1 RTK GPS GNSS Receive The Same Model As Chc IBASE
Channels: 1408 Transmitting Power: 0.5W, 1W, 2W Adjustable
Operating System: Linux System Transmitting Speed: 9.6Kbps, 19.2Kbps
Satellite Tracking: GPS+BDS+Glonass+galileo+QZSS, Supporting The Third Generation Of Beidou, Achieving 5 Stars And 16 Frequencies Display Screen: 1 LCD Display
GPS: L1 C/A,L2E,L2C,L5

CHC Ibase /B5 Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station

CHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base StationCHC B5/IBASE Integrated Professional Chc B5 Gnss Base Receiver UHF Base Station



The B5 GNSS receiver is a fully integrated professional GNSS base station, specifically designed to meet 95% of surveyors' needs when work in UHF GNSS base and rover mode. The performance of the B5 UHF base station compared to a standard external UHF radio modem is almost perfect. But its unique design eliminates the need for a heavy external battery, cumbersome cables, external radio and radio antenna. Its 5-watt radio module provides operational GNSS RTK coverage up to 25 km with optimai conditions and features a real-time UHF interference self-checking technique, allowing the operator to select the most appropriate frequency channel to use.

Product Parameters



Model B5
GNSS Performance
Channels 1408 channels
GPS L1C, A, L2P(Y), L2C, L5
GLONASS L1, L2
Galileo E1, E5a, E5b, E6
BeiDou B1l, B2l, B3l, B1C, B2a, B2b
QZSS L1, L2, L5, L6
PPP B2b-PPP
SBAS L1, L5
GNSS Accuracies
Real time kinematics(RTK)

Horizontal: 8mm + 1ppm RMS

Vertical: 15mm + 1 ppm RMS

Initialization time: < 10s

Initialization reliability: > 99.9%

Post-processing kinematics(PPK)

Horizontal : 3 mm + 1 ppm RMS

Vertical: 5 mm +1 ppm RMS

Post-processing static

Horizontal : 2.5 mm + 0.5 ppm RMS

Vertical: 5 mm + 0.5 ppm RMS

Code differential

Horizontal : 0.4m RMS

Vertical: 0.8m RMS
