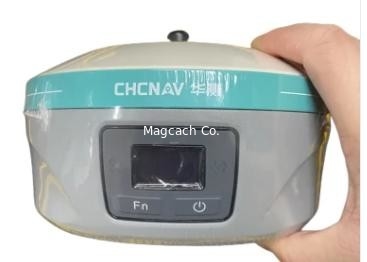

2022 Year China Hot Sales Professional Rtk Receiver Chc Ibase with Imu Chc X6/T5PRO Rover

Large Image : 2022 Year China Hot Sales Professional Rtk Receiver Chc Ibase with Imu Chc X6/T5PRO Rover

Product Details:

Place of Origin:	China
Brand Name:	CHC
Certification:	CE
Model Number:	T5Pro and X6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	With Standard Packing Way
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

2022 Year China Hot Sales Professional Rtk Receiver Chc Ibase with Imu Chc X6/T5PRO Rover

Project	Content	Parameter
Receiver characteristics	satellite tracking	GPS+BDS+Glonass+galileo+QZSS, supporting the third generation of Beidou, achieving 5 stars and 16 frequencies
	number of channels	624 channels
	operating system	Linux system
	Initialization time
	Initialization reliability	>99.99%
Receiver appearance	button	1 dynamic/static switch key, 1 power key
	Indicator light	1 differential signal light, 1 satellite light
	Display screen	1 LCD display
Nominal accuracy	Static accuracy	Plane accuracy: ±(2.5+ 0.5×10-6×D) mm
	Static accuracy	Elevation accuracy: ±(5+0.5×10-6×D) mm
	RTK accuracy	Plane accuracy: ±(8 + 1×10-6×D) mm
	RTK accuracy	Elevation accuracy: ±(15+ 1×10-6×D) mm
	Single machine accuracy	1.5m
	Code difference accuracy	Plane accuracy: ±(0.25+ 1×10-6×D) m
	Code difference accuracy	Elevation accuracy: ±(0.5+ 1×10-6×D) m
Electrification parameters	Battery	Removable 14000mAh lithium battery, support base station 12+ hours battery life
Electrification parameters	External power supply	The host can be powered by DC power supply, 220V AC power supply, and can directly power the host through the radio (9-24) V DC
Physical properties	size	Φ160.54 mm*103 mm
	weight	1.73kg
	Material	Magnesium alloy AZ91D body
	Operating temperature	-45℃~+85℃
	storage temperature	-55℃~+85℃
	humidity	100% non-condensing
	Waterproof and dustproof	IP68 level
	Shock vibration	IK08 level
	Anti-drop	Resistance to free fall of 2 meters
Data communication	I/O interface	1 external UHF antenna interface
		1 seven-pin data port interface, support power supply, differential data output
		1 nano sim card slot
		Built-in esim, free of charge for surveying and mapping for three years at the factory
	Radio station	Built-in transceiver, power: up to 5W
	Network module	Support 4G full Netcom
	Wi-Fi	802.11 b/g/n
	Blue tooth	BT 4.0, backward compatible with BT2.x, protocol support Win/Android/IOS system
	NFC	Support NFC flash connection
Data output	Output format	NMEA 0183, binary code
Data output	output method	BT/Wi-Fi/RS232/Serial
Static storage	storage format	Direct recording of HCN, HRC, RINEX, compressed RINEX
	storage	Standard 8GB storage, support space protection
	Download method	FTP remote push + local one-click download, HTTP download
Receiver	Super twin	Support radio + network two-way data differential at the same time, provide comprehensive data services
Receiver	one-button start	ChinaTest researches and develops data link concurrent communication technology, and the base station is set up immediately
