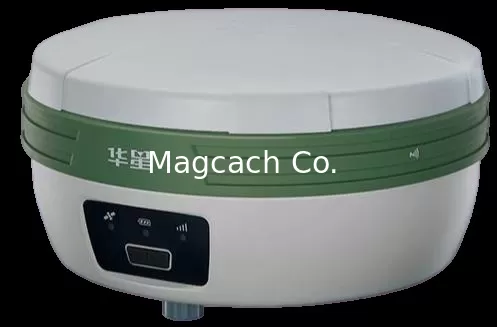

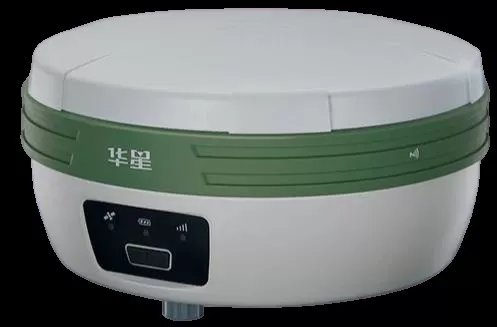

HI-Target RTK GPS Huaxing A8plus GPS Receiver for Survey

Large Image : HI-Target RTK GPS Huaxing A8plus GPS Receiver for Survey

Product Details:

Place of Origin:	China
Brand Name:	Hi-Target
Certification:	CE
Model Number:	A8 Plus

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	With Standard Packing Way
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Hi-Target A8 Plus Gnss Rtk System Made in China

HI-Target RTK GPS Huaxing A8plus GPS Receiver for Survey

A8 upgrade version , compact size, 8GB internal storage
Key features:
1)High technology GNSS engine
2) Support GPS, GLONASS, BDS, GALLILEO
3) Rugged design and user-friendly functions
Communications:
1)3G
Built-in 3G module,support WCDMA/HSDPA/EDGE/GPRS
Network RTK (via CORS) range 20-50km
2)HI-TARGET internal UHF radio (standard)
Frequency :460 MHz with 116 channels
Transmitting power :0.1W, 1W, 2W adjustable
Transmitting Speed :Up to 19.2Kbps
Working range: 3~5Km typical, 8~10km optimal
3)HI-TARGET External UHF radio (standard)
Frequency : 460 MHz with 116 channels
Transmitting power : 5W, 10W, 20W, 30W adjustable
Transmitting Speed : Up to 19.2Kbps
Working Range : 8~10Km typical, 15~20km optimal
Support other external communication device
For example, external GSM modem

Specifications:

Model	A8 plus
System Configuration	Data storage	8GB internal memory
	Data Formats	1Hz positioning output, up to 50 Hz - depends on installed option
		CMR: sCMRx,CMR,CMR+input and output
		RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1,3.2 input and output
		Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
		Navigation outputs binary: GSOF,1 Pulse Per Second Output
Satellite Signals Tracked Simultaneously	Channels	220,Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
	BDS	B1, B2,B3
	GPS	L1, L2C/P, L5
	GLONASS	Simultaneous L1, L2
	SBAS	Simultaneous L1, C/A, L5(EGNOS, WAAS, MSAS, GAGAN, QZSS)
Static and Fast Static GNSS Surveying	Horizontal	2.5mm+0.5ppm RMS
Static and Fast Static GNSS Surveying	Vertical	5mm+0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying	Horizontal	1cm+1ppm RMS
	Vertical	2.5cm+1ppm RMS
	Initialization time	Typically 10 minutes for base while 5minutes for rover
	Initialization reliability	Typically > 99.9%
RealtimeKinematic(RTK) surveying	Horizontal	8mm+1ppm RMS
	Vertical	15mm+1ppm RMS
	Initialization time	Typically < 8seconds
	Initialization reliability	Typically > 99.9%
Code Differential GNSS Positioning	Horizontal	25cm+1ppm RMS
	Vertical	50cm+1ppm RMS
	SBAS	0.50m Horizontal, 0.85m Vertical
Power and Battery	Power	6V to 28V DC external power input,Power consumption ≤3.5W
	Internal battery	Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery
	Internal battery life	static:13 - 15 hours
		RTK Rover (UHF/GPRS/3G) 10 - 12 hours
		RTK Base 8 - 10 hours
I/O Interface	1 xBluetooth, 1 x standard USB2.0 port,2 x RS232 serial port ,2x DC power in put (8-pin & 5-pin)
Physical	Dimensions (W x H)	164mm x 83.5mm
	Weight	1.4kg with internal battery, internal radio,standard UHF antenna
	Operating temperature	-45ºCto +65ºC (-49ºF to +149ºF)
	Storage temperature	-55ºC to +85ºC(-67ºF to +185ºF)
	Humidity	100%, considering
	Water/dustproof	IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
	Shock and vibration	Designed to survive a 3m(9.84ft) natural fall onto concrete.
