CHC RTK GPS T5Pro GPS receiver

China CHC RTK GPS T5Pro  GPS receiver supplier
CHC RTK GPS T5Pro  GPS receiver supplier CHC RTK GPS T5Pro  GPS receiver supplier CHC RTK GPS T5Pro  GPS receiver supplier CHC RTK GPS T5Pro  GPS receiver supplier CHC RTK GPS T5Pro  GPS receiver supplier

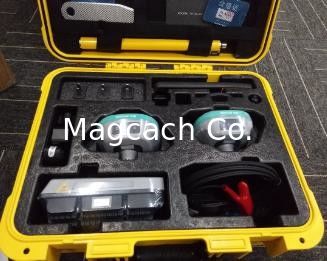

Large Image :  CHC RTK GPS T5Pro GPS receiver

Product Details:

Place of Origin: China
Brand Name: CHC
Certification: CE
Model Number: T5Pro

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description

CHC RTK GPS T5pro GPS receiver



T5pro inertial navigation RTK pocket

T5Pro inertial navigation plate pocket RTK, the whole machine design is small and light, easy to carry work is not tiring; integrated inertial navigation module, achieve no alignment measurement, improve user 20% work efficiency, use super double receive mode, let the original one-click setting, become no setting, Let the user have no chance of making mistakes. inertial navigation plate pocket RTK will ## mapping equipment new trend, so that the measurement to a new height.

CHC RTK GPS T5Pro  GPS receiver

Data Sheet

Project Content Parameter
Receiver characteristics Tracking 624 channel, support Beidou all constellation, support Beidou 3 generation
Operating system LINUX operating system
Initialization time 1 <5 s( Typical values)
Initialization reliability gt;99.99%
Receiver appearance Press button 1 dynamic/static switch key ,1 power key
Indicator 1 differential signal light ,1## lamp ,1 static data acquisition lamp ,1 power supply lamp
Nominal accuracy 2 Static precision Flat accuracy :±(2.5 0.5×10-6×D) mm
Elevation accuracy :±5 0.5×10-6×D) mm
RTK accuracy Flat accuracy :±8 1×10-6×D) mm
Elevation accuracy :±(15); and 1×10-6×D) mm
Single machine precision 1.5 m
Code Difference Precision 3 Flat accuracy :±(0.25 1×10-6×D) m
Elevation accuracy :±0.5 1×10-6×D) m
GNSS inertial navigation 4 IMU 200HZ
Inclined angle 0~60°
Tilt compensation accuracy <unk6>(accuracy within 30°<2.5 cm)

Electrification parameters



Battery Built-in 6800 mAh lithium battery to support 15 hours of mobile station life
External power supply USB external power supply

Physical characteristics



Size (length * width * height) 119 mm*119mm *85mm
Weight 0.73KG
Material Magnesium alloy AZ91D fuselage
Working temperature -45℃~ 75℃
Storage temperature -55℃~ 85℃
Humidity 100% No condensation
Waterproof and Dustproof IP68 level
Shock vibration IK08 level
Fall 2 m free fall

Data output



Output format NMEA 0183, binary codes
Output mode BT/Wi-Fi/ Radio



Static storage





Storage format



Direct HCN,HRC,RINEX recording

Storage space 8 standard GB built-in storage
Download Universal USB data download; HTTP download



Data communications





I/O interface





1 external UHF antenna interface



1 USB-TypeC interface, support charging, power supply, data download

Network module Handbook support 4 G All Netcom
Radio

Built-in HF 450-470 MHz single station

China Test Protocol, Transparent Transmission, TT450 Protocol

Bluetooth BT4.0, Downward Compatible BT2.x, Compatible Windows,Android,IOS Systems
Datatransmission Wi-Fi data link
Wi-Fi b/g/n 802.11
NFC Support NFC Flash



Receiver function



Super Double Support the simultaneous difference of two channels of data in the radio network and provide comprehensive data services
One-click match Handbook software to match base station data
Remote assistance Support one-click remote assistance



Handbook parameters



model HCE320
Network 4G All Netcom (Mobile Unicom Telecom 2 G/3G/4G)



Operating system



Android 7.1

CPU 8-core extreme speed processor
RAM ROM 2GB 16GB
LCD screen 5.5-inch AMOLED self-luminous display
Physical keys Full function keys
Input method The Automatic Input Method of Chinese Test
Camera 800W
Battery mAh 8000
III. Prevention IP68
Electrical contact Support
