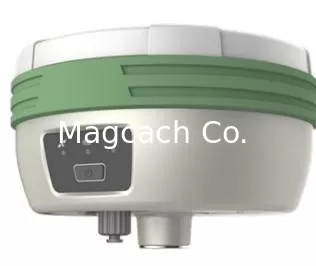

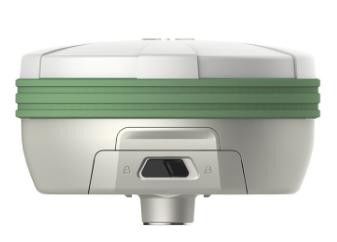

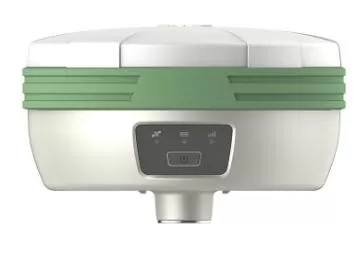

Model | A8 plus | ||
System Configuration | Data storage | 8GB internal memory | |
Data Formats | 1Hz positioning output, up to 50 Hz - depends on installed option | ||
CMR: sCMRx,CMR,CMR+input and output | |||
RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1,3.2 input and output | |||
Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS | |||
Navigation outputs binary: GSOF,1 Pulse Per Second Output | |||
Satellite Signals Tracked Simultaneously | Channels | 220,Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology | |
BDS | B1, B2,B3 | ||
GPS | L1, L2C/P, L5 | ||
GLONASS | Simultaneous L1, L2 | ||
SBAS | Simultaneous L1, C/A, L5(EGNOS, WAAS, MSAS, GAGAN, QZSS) | ||
Static and Fast Static GNSS Surveying | Horizontal | 2.5mm+0.5ppm RMS | |
Vertical | 5mm+0.5ppm RMS | ||
Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying | Horizontal | 1cm+1ppm RMS | |
Vertical | 2.5cm+1ppm RMS | ||
Initialization time | Typically 10 minutes for base while 5minutes for rover | ||
Initialization reliability | Typically > 99.9% | ||
RealtimeKinematic(RTK) surveying | Horizontal | 8mm+1ppm RMS | |
Vertical | 15mm+1ppm RMS | ||
Initialization time | Typically < 8seconds | ||
Initialization reliability | Typically > 99.9% | ||
Code Differential GNSS Positioning | Horizontal | 25cm+1ppm RMS | |
Vertical | 50cm+1ppm RMS | ||
SBAS | 0.50m Horizontal, 0.85m Vertical | ||
Power and Battery | Power | 6V to 28V DC external power input,Power consumption ≤3.5W | |
Internal battery | Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery | ||
Internal battery life | static:13 - 15 hours | ||
RTK Rover (UHF/GPRS/3G) 10 - 12 hours | |||
RTK Base 8 - 10 hours | |||
I/O Interface | 1 xBluetooth, 1 x standard USB2.0 port,2 x RS232 serial port ,2x DC power input (8-pin & 5-pin) | ||
Physical | Dimensions (W x H) | 164mm x 83.5mm | |
Weight | 1.4kg with internal battery, internal radio,standard UHF antenna | ||
Operating temperature | -45ºCto +65ºC (-49ºF to +149ºF) | ||
Storage temperature | -55ºC to +85ºC(-67ºF to +185ºF) | ||
Humidity | 100%, considering | ||
Water/dustproof | IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft). | ||
Shock and vibration | Designed to survive a 3m(9.84ft) natural fall onto concrete. |
