China brand Kolida GPS K96T RTK GPS

Certification
Good quality UAV / Drone for sales
Good quality UAV / Drone for sales
I'm Online Chat Now

China brand Kolida GPS K96T RTK GPS

China China brand Kolida GPS K96T RTK GPS supplier
China brand Kolida GPS K96T RTK GPS supplier China brand Kolida GPS K96T RTK GPS supplier China brand Kolida GPS K96T RTK GPS supplier China brand Kolida GPS K96T RTK GPS supplier China brand Kolida GPS K96T RTK GPS supplier

Large Image :  China brand Kolida GPS K96T RTK GPS

Product Details:

Place of Origin: China
Brand Name: Kolida
Certification: CE
Model Number: K96T

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description

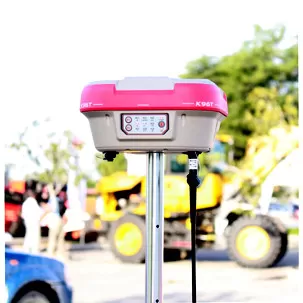

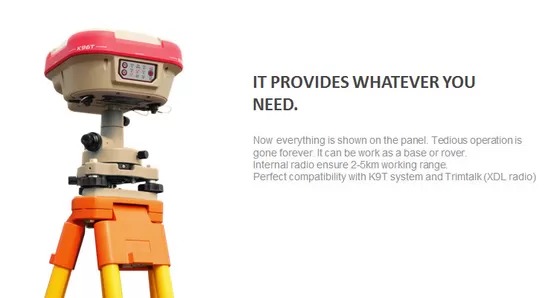

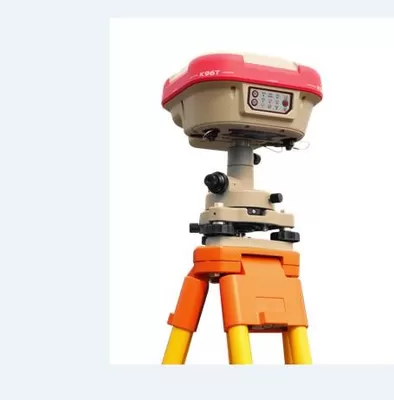

China brand Kolida GPS K96T RTK GPS

China brand Kolida GPS K96T RTK GPS

220 channels, Pacific Crest GNSS Motherboard, support GPS/GLONASS/Galileo/BeiDou

Built-in Transreceiver Radio with 2-5 km emitting range

Built-in GPRS (3G optional) modem and UHF data link

Superior waterproof and dustproof IP67

Small, lightweight and rugged design for demanding environment field work

4G Internal Memory Space



Satellite Signal Tracked Simultaneously
GPS: L1C/A,L1C,L2C, L2E, L5
GLONASS: L1C/A, L1P, L2C/A, L2P, L3
SBAS: WAAS, EGNOS, MSAS
Galileo: E1, E5A, E5B (test)
Beidou: B1, B2
Positioning Accuracy

Real Time Kinematic (RTK): Horizontal: 8mm+1ppm RMS

Vertical: 15mm+1ppm RMS

Initialization time: typically<8s

Initialization reliability : typically >99.9%

Static Surveying (Post-processing): Horizontal: 3mm+0.5ppm RMS

Vertical: 5mm+0.5ppm RMS

Baseline Length: ≤300km

Communication & Data Storage

Standard USB 2.0 Port

RS-232 Port: Baud rate up to 115200

Integrated Bluetooth ® Class 2

Integrated Trans-receiver Radio 430-450/ 450-470 Mhz

Internal Radio Working Range: 2-5 km

External Radio Working Range: 15-20km

Data Storage: Internal Memory 4GB

Update Rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz positioning output.

Reference Output: CMR, CMR+, RTCM2.1, RTCM2.2, RTCM2.3, RTCM3.0, RTCM3.1

Physical & Environmental

Dimension(LxWxH): 190mmx 190mmx 98mm

Weight: 1.58kg (include all module and battery)

Working Temp. : -45℃ to +60℃

Storage Temp.: -55℃ to +85℃

Humidity: 100% condensing

Water/ Dust Proof: IP67

Shock and Vibration: designed to survive from a 2.5m drop onto concrete

Electrical

External Power Input: 12-15V DC (not less than 36Ah)

Internal Battery Capacity: 3400mAh

Internal Battery Life: 6-12 hours for 2 batteries
