CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS

China CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS supplier
CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS supplier CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS supplier CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS supplier CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS supplier

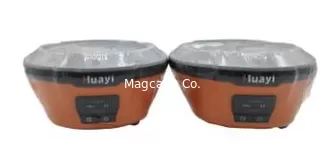

Large Image :  CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS

Product Details:

Place of Origin: China
Brand Name: Huayi
Certification: CE
Model Number: E91

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description

CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS

CHC Brand Huayi GPS E91 GNSS Receiver with 624 Channels for Land Survey GPS

Specification:



model CHC E91
Gnss Channel 624
Satellite Tracked GPS L1CA/L1P/L1C/L2P/L2C/L5
GLONASS G1, G2, G3
Galileo E1, E5a, E5b, ALTBOC, E6
QZSS L1, L2 L5,
BeiDou B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC
SBAS Ll, L5



Update rate 5 Hz, up to 50 Hz
Performance Specifications
Signal Reacquisition < 1 sec
Hot Start < 10 sec
Initialization Reliability > 99.9%
Memory 8 GB
Real-Time Accuracy (rms)
Static Accuracy

Horizontal:3mm + 1ppm

Vertical:5 mm + 1 ppm

RTK Accuracy

Horizontal:8 mm + 1 ppm

Vertical:15 mm + 1 ppm

Code Differential Horizontal:0.4 m
SBAS Accuracy Horizontal:0.8 m
Communication
7-pin Connect to external power and radio
USB For charging and data transmission
Cellular Global 4G
Bluetooth V4.1
WIFI 802.11 ac/n/b/g/n
WebUI

Update firmware, manage settings and

status, download data

Date formats

CNR input and out put

RTCM 2.x, RTCM 3.x input and output
NMEA 0183 output
HCN, HRC and RINEX 2.11, RINEX 3.02
NTRIP Client, NTRIP Caster

Electronic Bubble Support
Dimensions 160*158*96mm , 1.55KG
Shock Survive a 2 m pole drop on concrete floor 1.2 m free drop
5-pin lemo port connecting external power supply and external radio
SIM Card NANO SIM
Cellular Global 4G
Bluetooth V2.1+EDR / V4.1 Dual Mode, Class 2
WIFI 802.11 ac/n/b/g/n
WebUI

Update firmware, manage settings and

status, download data

Electronic Bubble Support
Environment
Dustproof&Waterproof IP67 (Customizable IP68)
Humidity 95% non-condense
Power Supply
Battery Rechargeable, built-in Lithium-ion battery,7.2 V - 10200 mAh
Voltage 9~28 V DC external power input
Working Time Up to 16 hours
Charge Time Typically 4 hours
Internal Radio
Frequency Range 410 - 470 MHz
Protocol CHC, Transparent, TT450
Emitting Power 0.5 W / 2 W
Operating Range 5 km typically
