Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk

China Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier
Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk supplier

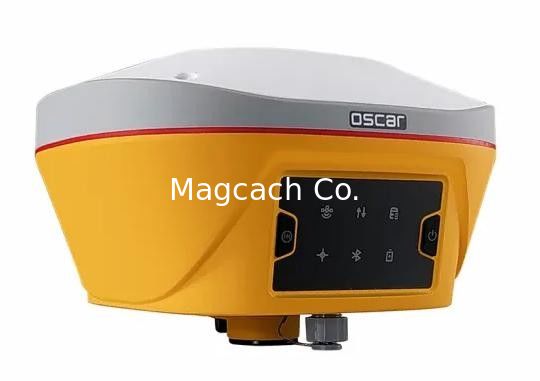

Large Image :  Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk

Product Details:

Place of Origin: China
Brand Name: TERSUS
Certification: CE
Model Number: Oscar Basic

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: with standard packing way
Delivery Time: 3-5work days after the goods are paid
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 10000 per year
Detailed Product Description
Model No.: Tersus Oscar Basic Working Mode: Various Working Modes
Language:: Support Language Customized Transport Package: Case And Carton
H.S.Code: 8526919090 Channels: Supports 576 Channels
Internal Storage: 16GB/8GB Internal Storage UHF Radio: 410-470MHz UHF Radio, 4G Network, Wi-Fi, Bluetooth, NFC

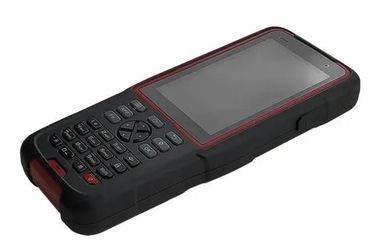

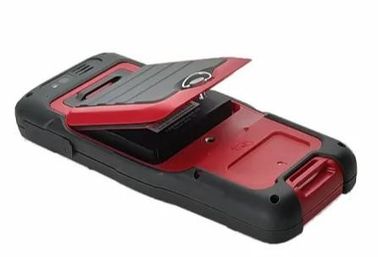

Tersus Oscar Basic +External Datalink +Rover+Tc20 Controller Full Set Gnss Rtk

Tersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss RtkTersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss RtkTersus Oscar Basic Full Set (base+external radio+rover+TC20 controller) Gnss Rtk

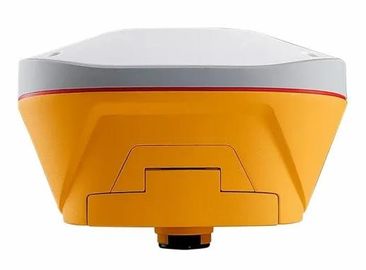

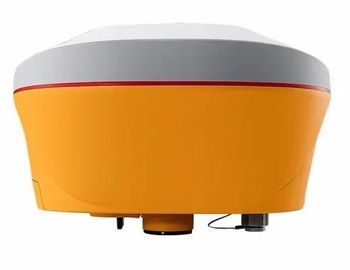

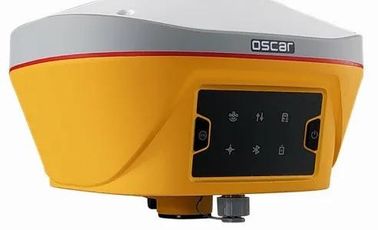

The Oscar GNSS Receiver is a new generation GNSS RTK system. It supports calibration-free tilt compensation function which is immune to magnetic disturbances, leveling pole is not required. Easy configuration with 1.54 inch interactive screen on Ultimate and Advanced versions. With an internal high-performance multi-constellation and multi-frequency GNSS board, the Oscar GNSS Receiver can provide high accuracy and stable signal detection. The high-performance antenna can speed up the time to first fix (TTFF) and improve anti-jamming performance. The built-in large capacity battery is detachable, two batteries support up to 16 hours of field work in 4G/3G/2G network and Rover radio mode. The built-in UHF radio module supports long distance communication. The rugged housing protects the equipment from harsh environments.

The Oscar GNSS Receiver has three versions: Ultimate, Advanced, and Basic. It provides selectivity for the requirement from different users.





Key Features
Supports multiple constellations & frequencies:

-GPS L1, L2, L5

-GLONASS L1, L2

-BeiDou B1, B2, B3

-Galileo E1, E5a, E5b

-QZSS L1, L2, L5

-SBAS (EGNOS, WAAS, MSAS, GAGAN) L1C/A

Supports 576 channels
410-470MHz UHF radio, 4G network, Wi-Fi, Bluetooth, NFC
Tilt compensation without calibration, immune to magnetic disturbances
Various working modes
16GB/8GB internal storage
Up to 16 hours working in 4G/3G/2G network and Rover radio mode
IP67-rated dust- & waterproof enclosure, for reliability in harsh environmental conditions
Free subscription of Tersus Caster Service (TCS): transmit the correction data from Oscar Base to Rover
Performance
Signal tracking: GPS L1, L2, L5; GLONASS L1, L2; BeiDou B1, B2, B3;
Galileo E1, E5a, E5b; QZSS L1, L2, L5;
SBAS (EGNOS, WAAS, MSAS, GAGAN) L1C/A
Channels: 576
Single Point Positioning Accuracy (RMS):
-Horizontal: 1.5m
-Vertical: 3.0m
DGPS Positioning Accuracy (RMS):
-Horizontal: 0.4m
-Vertical: 0.8m
SBAS Differential Positioning Accuracy (RMS):
-Horizontal: 0.6m
-Vertical: 1.2m
High-Precision Static (RMS):
-Horizontal: 3mm+0.1ppm
-Vertical: 3.5mm+0.4ppm
Static & Fast Static (RMS):
-Horizontal: 3mm+0.5ppm
-Vertical: 5mm+0.5ppm
Post Processed Kinematic (RMS):
-Horizontal: 8mm+1ppm
-Vertical: 15mm+1ppm
Real Time Kinematic (RMS):
-Horizontal: 8mm+1ppm
-Vertical: 15mm+1ppm
Network Real Time Kinematic (RMS):
-Horizontal: 8mm+0.5ppm
-Vertical: 15mm+0.5ppm
Observation Accuracy (zenith direction):
-C/A Code: 10cm
-P Code: 20cm
-Carrier Phase: 1mm
Time To First Fix (TTFF):
-Cold Start: <35s
-Warm Start: <10s
Reacquisition: <1s
Performance - continued
Tilt Compensation Accuracy (within 30° ) ≤2cm (1)
Timing Accuracy (RMS): 20ns
Velocity Accuracy (RMS): 0.03m/s
Initialization (typical): <10s
Initialization Reliability: >99.9%
System & Data
Operating system: Linux
Storage: Storage:
Data format: CMR, CMR+, RTCM 2.X/3.X
Data output: RINEX, NMEA-0183, Tersus Binary
Data update rate: 20Hz
Software Support
Tersus Nuwa
MicroSurvey FieldGenius
