High Quality Tersus David Base Kit with Big External 30W Radio

China High Quality Tersus David Base Kit with Big External 30W Radio supplier
High Quality Tersus David Base Kit with Big External 30W Radio supplier High Quality Tersus David Base Kit with Big External 30W Radio supplier High Quality Tersus David Base Kit with Big External 30W Radio supplier High Quality Tersus David Base Kit with Big External 30W Radio supplier

Large Image :  High Quality Tersus David Base Kit with Big External 30W Radio

Product Details:

Place of Origin: China
Brand Name: TERSUS
Certification: CE
Model Number: David Plus

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: with standard packing way
Delivery Time: 3-5work days after the goods are paid
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10000 per year
Detailed Product Description
Model No.: David Plus Accuracy: 10mm+1ppm
Language:: Support Language Customized Transport Package: Case And Carton
H.S.Code: 8526919090

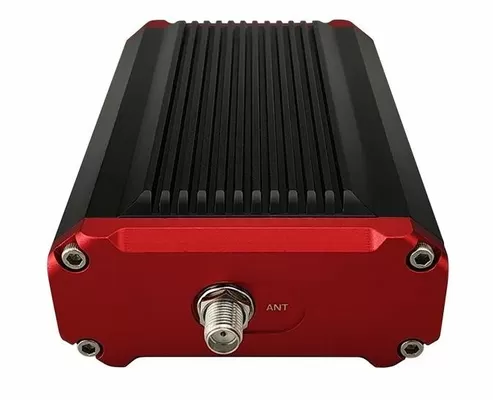

Tersus David Plus Gnss Receiver (positioning, heading) Without Antenna



High Quality Tersus David Base Kit with Big External 30W Radio

High Quality Tersus David Base Kit with Big External 30W Radio

High Quality Tersus David Base Kit with Big External 30W Radio

OVERVIEW:
The Tersus David is a cost-efficient, palm-sized GNSS receiver designed for surveying, UAVs, AGVs, and agricultural applications. Working with an external GNSS antenna, the free Tersus Survey App and post-processing software, the David GNSS receiver is a low-cost solution for all survey applications, including real-time RTK positioning and data collection for PPK.

A 4GB in-built memory makes it easy to record data for post processing. The compact size, IP67-rated enclosure, and external Bluetooth module alleviates most of the inconveniences encountered in field work.



Key Features
Supports multiple constellations & frequencies:

-GPS L1, L2

-GLONASS L1, L2

-BeiDou B1, B2

Supports 384 channels
Supports RTCM2.3/3.x, CMR, CMR+ corrections
Easy to connect an external powerful radio for long range communication
Flexible for integration in different applications
20Hz raw measurement output for post processing
The carrier phase accuracy down to 1mm
In-built 4GB eMMC for data recording
Input power range is 5~12V DC
IP67-rated dust- & waterproof enclosure, for reliability in harsh environmental conditions
Supports Nuwa & FieldGenius surveying software



Performance

Signal Tracking For Antenna:

GPS L1, L2;

GLONASS L1, L2;

BeiDou B1, B2

GNSS Channels: 384
Single Point Positioning Accuracy (RMS):
-Horizontal: 1.5m
-Vertical: 3.0m
Real Time Kinematic (RMS):
-Horizontal: 10mm+1ppm
-Vertical: 15mm+1ppm
Post Processed Kinematic (RMS):
-Horizontal: 10mm+1ppm
-Vertical: 15mm+1ppm
Static Post Processing (RMS):
-Horizontal: 3mm+0.5ppm
-Vertical: 5mm+0.5ppm
Observation Accuracy (zenith direction):
-C/A Code: 10cm
-P Code: 10cm
-Carrier Phase: 1mm
Time To First Fix (TTFF):
-Cold Start: <50s
-Warm Start: <30s
Timing Accuracy (RMS): 20ns
Velocity Accuracy (RMS): 0.03m/s
Initialization (typical): <10s
Initialization Reliability: >99.9%
Max. Measurements Update Rate: 20Hz
Input Voltage: 5V~12V DC1
Power Consumption (at 25ºC ): 3.2W (David only)
Active Antenna Input Impedance: 50Ω
Storage: In-built 4GB memory
Communication
Serial Ports: RS232 x2
USB Ports: USB 2.0 device x1
Antenna Connector: SMA female x1
COM Baud Rate: COM Baud Rate:
Software Support

Tersus Nuwa

MicroSurvey FieldGenius

Other Third Party Software Support NMEA-0183

Physical
Dimension: 104x65x31mm (David only)
Weight: ≈ 250g (David only
Operating Temperature: -40ºC ~ +85ºC
Dust- & Waterproof: IP67
Optional Accessories
2W 460MHz/30W 460MHz radio to transmit/receive RTK corrections
Battery bank
