ComNav M600 GNSS Receiver

Name: ComNav M600 GNSS Receiver
Brand: ComNav
SKU: M600
Price: 1 USD
Availability: InStock
Rating: 4.6 (153 reviews)

Large Image : ComNav M600 GNSS Receiver

Product Details:

Place of Origin:	China
Brand Name:	ComNav
Certification:	CE
Model Number:	M600

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	With Standard Packing Way
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Signal Tracking Channels::	404 Channels	Satellite Tracking::	GPS, BeiDou, GLONASS
RTK Horizontal Accuracy::	8mm+1ppm	RTK Vertical Accuracy::	15mm+1ppm
Multi-constellation Tracking:	The M600 Tracks 404 Channels With All Working And Planned GNSS Constellations Including GPS, GLONASS, BeiDou And SBAS.

M600 GNSS Receiver

The M600 GNSS receiver is able to deliver robust heading and positioning, with its rugged design and ease of integration, it is designed to deliver centimeter-accuracy positioning and high-accuracy heading to a wide range of mobile applications.

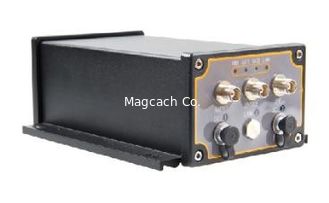

ComNav M600 GNSS Receiver

Features

GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2

Dual-antenna design for heading and positioning

DP-Filter Smooth Function

Support PPS and Event Marker

Advanced QUANTUM Technology

Overvoltage protection

Solution for Mobile Applications

ComNav M600 GNSS Receiver

Multi-constellation tracking

The M600 tracks 404 channels with all working and planned GNSS constellations including GPS, GLONASS, BeiDou and SBAS.

Easy to Integrate

With its T-type structure, you are flexible to integrate more modular based on your requirement, such as all kind of K-serials OEM Boards, UHF and Ethernet.

Dual-antenna Design

With dual-antenna input design, observation from both antennas are transferred to the processor where multi-constellation RTK are computed.

Performance
Signal tracking Channels:	404 channels
Satellite tracking:	GPS, BeiDou, GLONASS
RTK Horizontal accuracy:	8mm+1ppm
RTK Vertical accuracy:	15mm+1ppm
Post Processing Horizontal accuracy:	2.5mm+0.5ppm
Post Processing Vertical accuracy:	5mm+0.5ppm
RTK Initialization time:	less than 10s
Physical
Size (L × W × H):	200 mm × 145 mm × 80 mm
Weight:	1.3KG with internal UHF
Operating temperature:	-40 °C to + 70 °C
Shock:	Designed to survive a 2 m drop onto concrete
Humidity:	95% no condensation
Waterproof and dustproof:	IP67
Power consumption (3 constellations):	3 W
External power input:	10.5-28 VDC
Communications
1 Serial port (7 pin Lemo):	921,600 bps
Correction data I/O:	RTCM 2.X, 3.X, CMR, CMR+
Position data output rates:	1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Ethernet (Optional):	Web Server
UHF modem (optional):	Tx/Rx, 410-470 MHz
