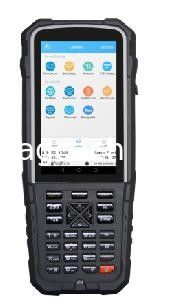

ComNav R500 Data Collector

Large Image : ComNav R500 Data Collector

Product Details:

Place of Origin:	China
Brand Name:	ComNav
Certification:	CE
Model Number:	R500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	With Standard Packing Way
Payment Terms:	T/T, L/C, Western Union,, MoneyGram
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Working Time::	>14 Hours (with WIFI,3G And LCD On)cm	Li-battery Capacity::	6500 MAh
ROM::	16 GB	RAM::	2 GB
Working Environment:y::	-10 °C To + 55 °C	Storage Temperature::	-30 °C To + 60 °C

R500 Data Collector

With IP68 Certified design, Long Battery Life and Powered by Android Operating System, the R500 ensures you work smarter and faster at your fingertips.

ComNav R500 Data Collector

Features

Android 6.0 Operating System
MIL-STD 810 G and IP68 Certified
4.3” Sunlight Readable Touch Display
8 MP Camera with Autofocus
Compact Design with Long Battery Life
Dual SIM and Dual Standby
Integrated 4G, Bluetooth and Wi-Fi

ComNav R500 Data Collector

IP68 Certified

The IP68 dust and water proof rating ensure the R500 work in harsh environments

Long Battery Life

The 6500mA Li-ion battery allows all day working for multiple surveying tasks

Android 6.0 Operating System

Compatible with Android based software Survey Master, the R500 is an ideal choice for data collection.

Physical
Working time:	>14 hours (with WIFI,3G and LCD on)cm
Li-battery capacity:	6500 mAh
ROM:	16 GB
RAM:	2 GB
Standby time:	720 hours
Working environment:y:	-10 °C to + 55 °C
Storage temperature:	-30 °C to + 60 °C
Weight:	>520 g with battery
Shock:	Designed to survive a 0.8 m drop onto concrete
Standby time:	720 hours
Dustproof and waterproof:	IP68
Communications
WLAN:	802.11 a/b/g/n/ac
SIM 1:	4G/3G/2G/CDMA
SIM 2:	Support GSM850/900/1800/1900
Bluetooth:	V4.0
USB:	Micro USB, OTG
Microphone:	Built in
Video:	Support
