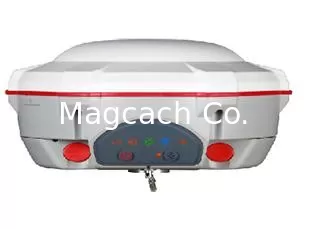

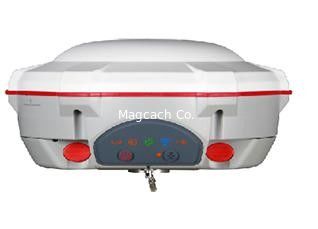

ComNav T300 Plus GNSS GPS RECEIVER
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Signal Tracking Channels:: | 572 Channels | Satellite Tracking:: | GPS, BeiDou, GLONASS, Galileo And SBAS |
|---|---|---|---|
| RTK Horizontal Accuracy:: | 8 Mm + 1 Ppm | RTK Vertical Accuracy:: | 15 Mm + 1 Ppm |
| Full-constellation Tracking: | The T300 Plus Tracks 572 Channels With All Working And Planned GNSS Constellations Including GPS, GLONASS, BeiDou, Galileo And SBAS. | Tilt Sensor: | The T300 Plus Supports Up To 30° Tilt Compensation That Allows You Collect High Accuracy Data Faster In The Field. |

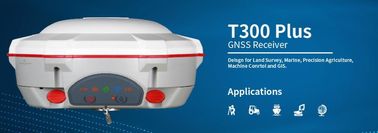

T300 PLUS GNSS RECEIVER
The T300 Plus GNSS Receiver is a new generation RTK receiver featuring full-constellation tracking, tilt compensation and easy workflow with Android-based Survey Master software, for centimeter accuracy survey on demand.
Feature:
GPS L1/L2/L5, BeiDou B1/B2/B3, GLONASS L1/L2, Galileo E1/E5a/E5b
Advanced QUANTUM Technology
WIFI/UHF/4G Module
Tilt Compensation
Smart Battery Design
Low Power Consumption
Support Long Baseline E-RTK
|
Full-constellation tracking
|
The T300 Plus tracks 572 channels with all working and planned GNSS constellations including GPS, GLONASS, BeiDou, Galileo and SBAS. |
|
Tilt sensor
|
The T300 Plus supports up to 30° tilt compensation that allows you collect high accuracy data faster in the field. |
|
Intuitive workflow
|
The T300 Plus is able to provide easier survey workflow via Survey Master Wizard function, improving productivity for both beginners and professional surveyors. |
Specification :
| Performance | |
| Signal tracking Channels: | 572 channels |
| Satellite tracking: | GPS, BeiDou, GLONASS, Galileo and SBAS |
| RTK Horizontal accuracy: | 8 mm + 1 ppm |
| RTK Vertical accuracy: | 15 mm + 1 ppm |
| Post Processing Horizontal accuracy: | 2.5 mm + 0.5 ppm |
| Post Processing Vertical accuracy: | 5 mm + 0.5 ppm |
| Initialization time: | less than 10 s |
| Physical | |
| Size(W × H): | Φ15.8 cm × 7.5 cm |
| Weight (incl. supplied two batteries): | 0.95 kg (2.1 lb) |
| Operating temperature: | -40 °C to + 65 °C (40 °F to 149 °F) |
| Shock: | Designed to survive a 2 m drop onto concrete |
| Humidity: | 100% non-condensing |
| Waterproof and dustproof: | IP67 |
| Power consumption (3 constellations): | 3.1 W |
| Memory: | 8 GB |
| Communications | |
| 1 Serial port (7 pin Lemo): | Baud rates up to 921,600 bps |
| Correction data I/O: | RTCM 2.X, 3.X, CMR, CMR+ |
| Position data output rates: | 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz |
| Modem: | WiFi, 4G, 3G, GSM |
| UHF modem (optional): | Tx/Rx, 410-470 MHz |
| Tx/Rx, 410-470 MHz | V4.0 protocol |
