CHC RTK GPS New Chc Rtk GPS I50 Chc GPS

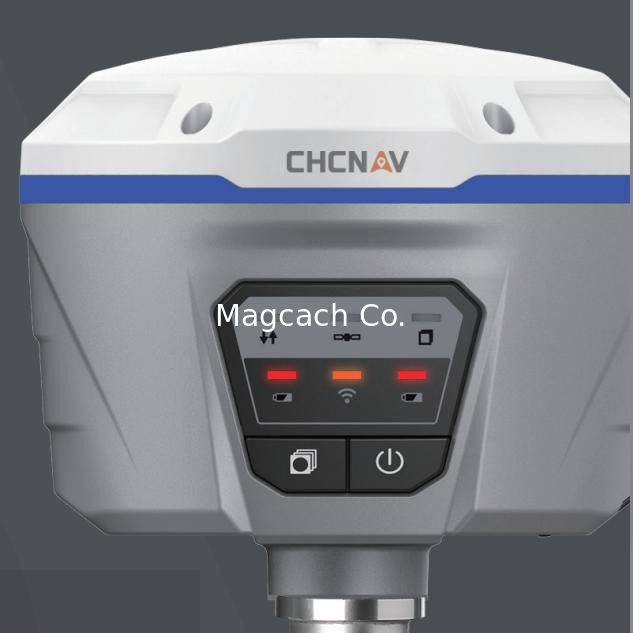

Large Image : CHC RTK GPS New Chc Rtk GPS I50 Chc GPS

Product Details:

Place of Origin:	China
Brand Name:	CHC
Certification:	CE
Model Number:	I50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	With Standard Packing Way
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

CHC RTK GPS I50

CHC RTK GPS New Chc Rtk GPS I50 Chc GPS

GNSS characteristics
220 channels	with simultaneously tracked satellite signals
	GPS: L1C/A, L1C, L2C, L2E, L5
	GLONASS: L1C/A,L1P, L2C/A, L2P, L3
	SBAS: L1C/A, L5 (QZSS, WAAS, EGNOS, GAGAN)
	Galileo: E1, E5A, E5B
	BeiDou: B1, B2

GNSS Accuracies(1)
SBAS differential positioning accuracy: 0.5 m RMS
High-precision static	Horizontal: 3.0 mm + 0.1 ppm RMS
	Vertical: 3.5 mm + 0.4 ppm RMS
Post-Processed Kinematic (PPK)	Horizontal: 8 mm + 1 ppm RMS
	Vertical: 15 mm + 1 ppm RMS
RTK	Horizontal: 8 mm + 1 ppm RMS
	Vertical: 15 mm + 1 ppm RMS
	Initialization time < 5 s
	Initialization reliability > 99.9%
Network RTK	Horizontal: 8 mm + 0.5 ppm RMS
	Vertical: 15 mm + 0.5 ppm RMS
	Initialization time < 10 s
	Initialization reliability > 99.9%

Hardware
Dimensions (H×W)	14 cm × 12.4 cm (5.5 in x 4.9 in)

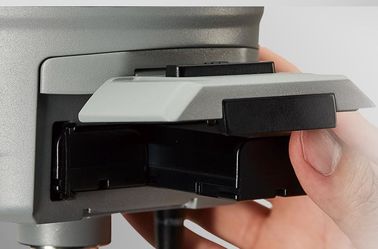

Weight	1.22 kg (2.69 lbs) with batteries
Environment
Operating	-40 °C to +75 °C (-40°F to 167°F)
Storage	-55 °C to +85°C (-67°F to 185°F)
Humidity	100% condensation

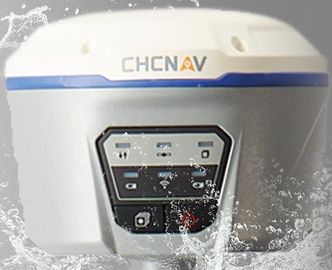

Dust and Waterproof	IP68, protected from temporary immersion to depth of 1 m (unit floats)
Shock and vibration	3 m (9.8 ft) pole drop onto concrete, MIL-STD-810G

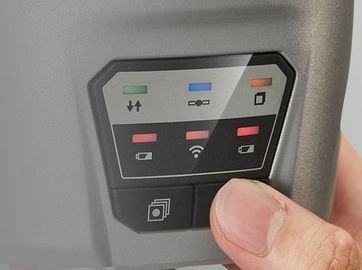

LCD	128x64dpi sunlight readable with function/accept buttons

Certification and Calibrations
FCC Part 15 (Class B Device), FCC Part 22, 24, 90; CE Mark; C-Tick; Bluetooth EPL, NGS Antenna Calibration, IGS Antenna Calibration, MIL-STD-810G.

Communications and Data Recording(2)
Serial	2 x 7pin LEMO port (external power, USB data download, USB update, RS-232)
External Power	12 to 36 VDC
USB	v2 - mounts as high-speed USB thumb drive
Cellular	Internally integrated 3.75G modem (optional 4G modem)
	HSPA+ 21 Mbps (download), 5.76 Mbps (upload)
	WCDMA 850/900/1700/1900/2100
	EDGE/GPRS/GSM 850/900/1800/1900
Bluetooth®	Internally integrated multimode system compatible with Android, Windows Mobile, iOS and Windows desktop operating systems
WiFi	802.11 b/g/n, access point mode
UHF Radios (2)	Protected TNC Female
Standard	Internal Rx/Tx: 450 - 470 Mhz; transmit power: 0.1 W to 2 W, protocol CHC; range: 5 km optimal conditions
Option 2	FCC Certified Internal Rx/Tx: 403- 473 MHz; transmit power: 0.1 W to 1 W, protocols Trimble, Satel, Pacific Crest; range: 5 km optimal conditions
Protocols	CMR: CMR+, sCMRx input and output
	RTCM: 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output
	NMEA 0183 output
	HCN and RINEX static formats
	NTRIP
Data Storage	32 GB high-speed memory
