HI Target RTK GPS V30 GNSS RTK system

China HI Target RTK GPS V30 GNSS RTK system supplier
HI Target RTK GPS V30 GNSS RTK system supplier HI Target RTK GPS V30 GNSS RTK system supplier HI Target RTK GPS V30 GNSS RTK system supplier HI Target RTK GPS V30 GNSS RTK system supplier

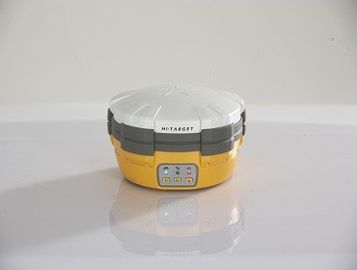

Large Image :  HI Target RTK GPS V30 GNSS RTK system

Product Details:

Place of Origin: China
Brand Name: HI-TARGET
Certification: CE
Model Number: V30

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description

Hi Target RTK  GPS V30 GNSS RTK system



HI Target RTK GPS V30 GNSS RTK system

The V30 GNSS RTK system is designed to meet high quality standards at an affordable price. It is outstanding in its class, with a rugged design and user-friendly functions.

Multi-constellation tracking

220 tracking channels.

Supports GPS, GLONASS, GALILEO, BDS, SBAS.

NGS approved GNSS antenna.



Intelligent operation

Equipped with a smart speaker guiding the whole operation.

Multi one-button functions make fieldwork easier, such as auto base setup by one button, the rover can get fix solution once it is turned on.





Diversify RTK application

Optional transceiver UHF radio

The transceiver UHF radio enables the working mode to be switchable between base and rover.

2-watt HI-TARGET internal UHF radio and 2-watt Pacific Crest TrimTalk© internal UHF radio are optional. Pacific Crest TrimTalk© internal UHF radio is compatible with other radios.

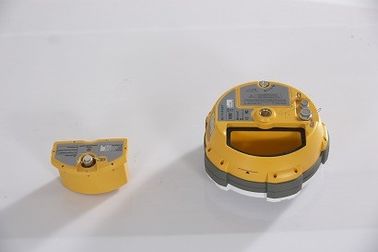

Removable internal UHF radio enables users to fix or exchange simply.



Seamless operation in CORS system

Built-in GPRS/GSM/3G module ensures that the V30 works perfectly with network RTK positioning.



Long-life battery

Powered by 5000mAh Li-ion battery.

Static working time 13 - 15 hours.

RTK Rover (UHF/GPRS/GSM) working time 10 - 12 hours.

RTK Base working time 8 - 10 hours.



Rugged and unique design

IP67 dust/water protection.

Withstands 3-meter natural fall onto concrete.

Rapid tracking and perfect avoidance or reduction of obstruction and multipath effect to ensure superior positioning capability.





Technical parameters

MEASUREMENTS

• 220 Channels

• Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology

• High precision multiple correlator for GNSS pseudo range measurements

• Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response

• Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth

• Signal-to-Noise ratios reported in dB-Hz

• Proven Pacific Crest low elevation tracking technology



Satellite signals tracked simultaneously

GPS: Simultaneous L1C/A, L2C, L2E, L5

GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P

SBAS: Simultaneous L1 C/A, L5

Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC

BDS: B1, B2

QZSS: L1 C/A, L1 SAIF, L2C, L5



POSITIONING PERFORMANCE



Static and Fast Static GNSS surveying

Horizontal: 2.5mm+0.5ppm RMS

Vertical: 5mm+0.5ppm RMS



Post Processing Kinematic

(PPK / Stop & Go) GNSS surveying

Horizontal: 1cm+1ppm RMS

Vertical: 2.5cm+1ppm RMS

Initialization time: typically 10 minutes for base while 5 minutes for rover

Initialization reliability: typically > 99.9%



RealtimeKinematic(RTK) surveying

Horizontal: 8mm+1ppm RMS

Vertical: 15mm+1ppm RMS

Initialization time: typically < 8 seconds

Initialization reliability: typically > 99.9%



Code Differential GNSS positioning

Horizontal: 25cm+1ppm RMS

Vertical: 50cm+1ppm RMS

SBAS href="#_edn4" [iv]: 0.50m Horizontal, 0.85m Vertical



HARDWARE



Physical

Dimensions (W x H): 19.50cm x 10.40cm(7.68 in x 4.09 in)

Weight: 1.3kg (2.86lb) with internal battery, internal radio, standard UHF antenna

Operating temperature: -45℃to +65℃ (-49℉ to +149℉)

Storage temperature: -55℃ to +85℃ (-67℉ to +185℉)

Humidity: 100%, considering

Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).

Shock and Vibration: Designed to survive a 3m(9.84ft) natural fall onto concrete.



Electrical

Power 6V to 28V DC external power input

Power consumption 2.5W

Automatic Switching between internal power and external power

Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment



Internal battery life

Static 13 - 15 hours

RTK Rover (UHF/GPRS/3G) 10 - 12 hours

RTK Base 8 - 10 hours

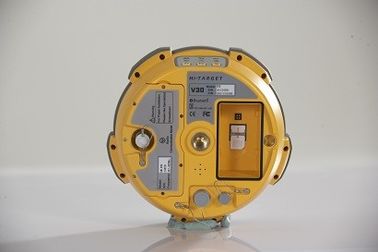

I/O interface

1 x Bluetooth

1 x standard USB2.0 port

2 x RS232 serial port

2 x DC power input (8-pin & 5-pin)





COMMUNICATION AND DATA STORAGE



GPRS/GSM or 3G

Fully integrated, fully sealed internal GPRS/GSM or 3G

Network RTK (via CORS) range20-50km



HI-TARGET internal UHF radio (standard)

Frequency: 460 MHz with 116 channels

Transmitting Power: 0.1W, 1W, 2W adjustable

Transmitting Speed: Up to 19.2Kbps

Working Range: 3~5Km typical, 8~10km optimal



Pacific Crest XDL micro Internal UHF Radio

Frequency: 403~473 MHz

Transmitting Power: 0.5W, 1.0W, 2.0W adjustable

Transmitting Speed: Up to 19.2Kbps

Support most of radio communication protocol

Working Range: 3~5km typical, 8~10km optimal



HI-TARGET External UHF radio (standard)

Frequency: 460 MHz with 116 channels

Transmitting Power: 5W, 10W, 20W, 30W adjustable

Transmitting Speed: Up to 19.2Kbps

Working Range: 8~10Km typical, 15~20km optimal



Pacific Crest ADL Vantage Pro External UHF radio

Frequency: 390~430 MHz or 430~470 MHz

Transmitting Power: 4W to 35W adjustable

Transmitting Speed: Up to 19.2Kbps

Support most of radio communication protocol

Working Range: 8~10Km typical, 15~20km optimal



Support other external communication device

For example, external GSM modem.



Data storage

64MB internal memory



Data formats

(1Hz positioning output, up to 50 Hz - depends on installed option)

CMR: sCMRx, CMR, CMR+input and output

RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1 input and output

Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS

Navigation outputs Binary: GSOF

1 Pulse Per Second Output
