CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS

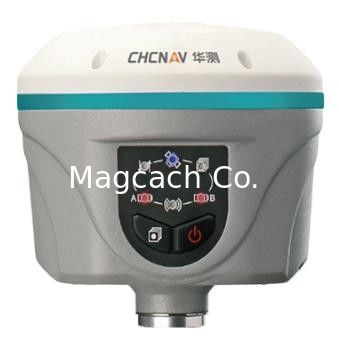

Large Image : CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS

Product Details:

Place of Origin:	China
Brand Name:	CHC
Certification:	CE
Model Number:	T3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	With Standard Packing Way
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

CHC GPS T3 engineering Type RTK GPS

CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS

Receiver characteristic	Satellite tracking	Support beidou full constellation, support single system positioning
	Satellite tracking	576 channel
	The operating system	LINUX system
	Initialization time	5s①
	Initial reliability	>99.99%
	The operating system	LINUX system
Receiver appearance	appearance	Streamlined cylinder
	The keys	1 power button, 1 dynamic/static switch key
	Indicator light	One satellite light, one differential signal light, one static data acquisition light, one wi-fi light, and two power lights
Nominal accuracy (2)	The static accuracy	Plane accuracy: ±(2.5+ 0.5×10-6×D) mm
	The static accuracy	Elevation accuracy: ±(5+0.5×10-6×D) mm
	Precision of RTK	Plane accuracy: ±(8 + 1×10-6×D) mm
		Elevation accuracy: ±(5+0.5×10-6×D) mm
	Single GPS precision	1.5m
	Code difference accuracy	Plane accuracy: ±(0.25+ 1×10-6×D) m
	Code difference accuracy	Elevation accuracy: ±(0.5+ 1×10-6×D) m
Electrification parameter	Battery	Removable dual battery design, power 6800mAh
Electrification parameter	External Power	The main engine can be powered by dc power supply, 220V ac power supply, and direct power supply to the main engine through the radio. External power supply (9-36)V DC
Physical properties	Size	Φ 14.2cm×12.0cm
	Weight	1.29kg
	Materials	The body is designed with magnesium alloy, and AZ91D is used as magnesium alloy material
	Working temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	humidity	100% no condensation
	Waterproof and dustproof	IP68
	The impact vibration	IK08 level
	Fall prevention	Resistance to 2 m free fall
Data communications	The I/O interface	1 external UHF antenna interface
		1 mini USB interface, support USB data download, USB disk upgrade function
		1 seven-pin data port supports power supply and differential data output
		1 Micro SIM slot
	Radio	Built-in integrated transceiver radio, power: 0.1w ~ 2W, 126 channels adjustable; External 30W high-power transmitter, supporting 50 communication channels; Agreement: China test agreement
	Network module (4)	Support mobile GSM/ td-scdma/tdd-lte, unicom GSM/WCDMA/ tdd-lte/fdd-lte, telecom tdd-lte/fdd-lte three network systems, all three operators can support.
	Wi-Fi	802.11b /g/n, with wi-fi hotspot function
	bluetooth	BT 4.0, downward compatible with bt2.x, the protocol supports Win/Android/IOS systems
Data output	The output format	NMEA 0183 binary code
	Output way	BT/wi-fi/RS232 / radio
Static storage	Storage format	It can directly record HCN, HRC, RINEX and compress RINEX
	The storage space	Standard 8GB storage, support space protection, external usb drive storage
	multithreading	Multithreaded storage, each thread can independently set the site name, sampling interval, recording time, data format
