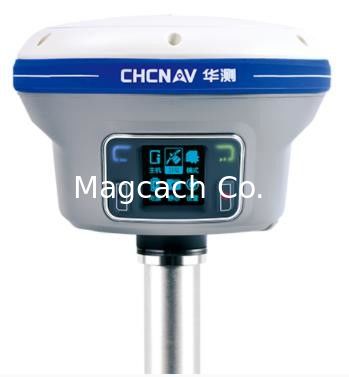

CHC RTK GPS Rtk GPS Chc X12 Rtk Gnss GPS

Large Image : CHC RTK GPS Rtk GPS Chc X12 Rtk Gnss GPS

Product Details:

Place of Origin:	China
Brand Name:	CHC
Certification:	CE
Model Number:	X12

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	With Standard Packing Way
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

CHC X12 Inertial Navigation RTK

CHC RTK GPS Rtk GPS Chc X12 Rtk Gnss GPS

CHC X12 Inertial Navigation RTK is a revolutionary RTK. X12 inertial navigation RTK integrates the inertial navigation module on the basis of traditional RTK to realize the integrated solution of inertial navigation and satellite positioning and improve the user's operating efficiency by 20%. X12 inertial navigation RTK USES virtual eSIM to realize network operation without card. The application of these two technologies will lead the new trend of surveying and mapping equipment.

Item	Contents	Parametet Data
Satellites and precision	Satellite system	GPS+BDS+Glonass+Galileo, supporting beidou three generations
	Wide area differential	SBAS + QZSS + IRNSS
	L-band satellite station difference	Optional, convergence time 5 minutes
	Resuming measurement	optional
	The static accuracy	Plane accuracy :±2.5mm + 0.5× operating distance ×10-6 mm Height accuracy :±5mm + 0.5× operating distance ×10-6 mm
Precision of RTK	Plane accuracy :±8mm + 1× operating distance ×10-6 mm Height accuracy :±15mm + 1× operating distance ×10-6 mm
GNSS + inertial navigation (2)	The output frequency	200Hz
	Tilt Angle	0~60°
	Tilt compensation accuracy	10mm + 0.7mm /°tilt (30° internal accuracy <2.5cm)
The user interaction	The LCD panel	1.46 inches, 128×128 resolution
	Indicator light	1 satellite light +1 differential data light
	The keys	Fn function key + power/confirm key
	voice	Voice support
	The Web page	Support PC/ mobile web pages
Physical properties	size	φ190*98.5mm
	The material	Magnesium alloy
	The weight	1.25kg
	Working temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	Waterproof and dustproof	IP68 (soak 1 meter under waterproofing)
	The brace	IK08 (mechanical impact force equal to that of 2.5kg steel hammer without damage and resistance to drop of 3m)
	Waterproof and breathable film	Prevent water vapor from entering the equipment in harsh environment such as sun exposure and sudden heavy rain
	Electronic bubble	Support automatic measurement
Electrical properties	The battery	Dual battery, 6800mAh, mobile station 10 hours of battery life
	External power supply	(9~28)V DC
	storage	32GB, 5 years typical data storage
Advanced features	Cloud service, base station mobile warning, base station power display, radio interference detection, data forwarding
Wireless communications	NFC	Support wi-fi, bluetooth touch and flash receiver
	eSIM	You can use CORS and network 1+N without card, and get 3 years' service fee free
	network	4 g netcom
	radio	Support built-in/external radio
	Wi-fi data link	support
Data output	The differential data	RTCM2.X,RTCM3.X,CMR,CMR +,CMRx,RTCA
	Location data	NMEA-0183,Trimble GSOF,NMEA2000
	Static data	HCN,RINEX 2.11,RINEX 3.02
External data link radio	The user interaction	LCD +4 direction keys +1 power/confirm key
	Transmission power	0 to 35 w is optional
	Advanced features	Automatic matching baud rate, data forwarding and relay optional
Control the hand book	model	HCE320
	The operating system	Android 7.1
	C P U	Eight-core 1.4ghz processor
	network	4G full network, dual Nano card +TF card switch
	The LCD panel	5.5 "AMOLED self-emitting capacitor screen
	The battery	8000mAh, fast charge support
	Battery life	20 hours
	Waterproof and dustproof	IP68
	Tapping the pen
