China CHC RTK GPS  X5 supplier
CHC RTK GPS  X5 supplier CHC RTK GPS  X5 supplier CHC RTK GPS  X5 supplier CHC RTK GPS  X5 supplier

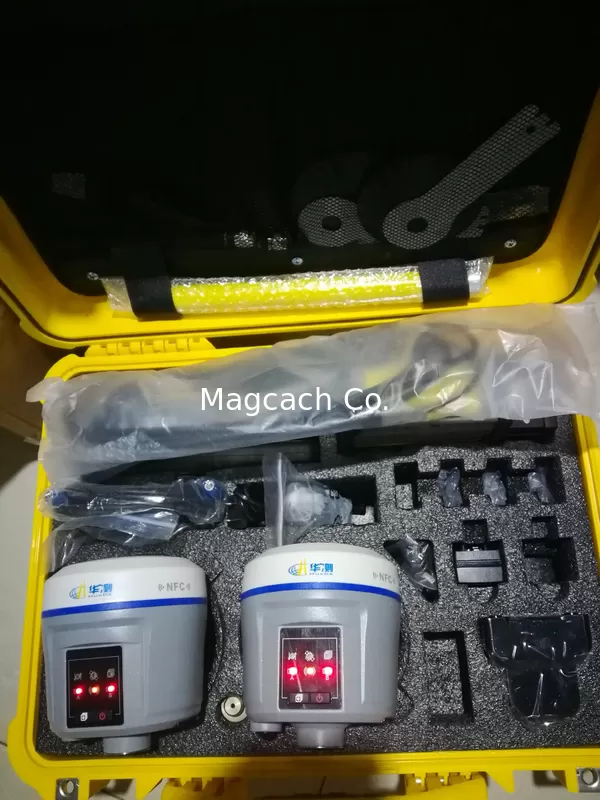

Large Image :  CHC RTK GPS X5

Product Details:

Place of Origin: China
Brand Name: CHC
Certification: CE
Model Number: X5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description




The X5 represents the pinnacle of productivity on today's jobsite. Leading technology with superior capabilities, theX5 has tracks all five constellations, ten frequencies, and uses every connectivity method available. The X5 is the smallest receiver on the market incorporating dual hot swappable batteries, allowing continuous uninterrupted work. All these features integrated into a small ergonomic package results in the most productive day of surveying possible.


▪ Light & ultra-rugged eliminates user fatigue
▪ Advanced connectivity integrates into any process with nearly any hardware
▪ Common work flows without a data collector
▪ Future proof design for years of productivity

GNSS characteristics
220 channels with simultaneously tracked satellite signals
  GPS: L1C/A, L1C, L2C, L2E, L5
  GLONASS: L1C/A,L1P, L2C/A, L2P, L3
  Galileo: E1, E5A, E5B
  BeiDou: B1, B2
GNSS Accuracies(1)
SBAS differential positioning accuracy: 0.5 m RMS
High-precision static Horizontal: 3.0 mm + 0.1 ppm RMS
  Vertical: 3.5 mm + 0.4 ppm RMS
Post-Processed Kinematic (PPK) Horizontal: 8 mm + 1 ppm RMS
  Vertical: 15 mm + 1 ppm RMS
RTK Horizontal: 8 mm + 1 ppm RMS
  Vertical: 15 mm + 1 ppm RMS
  Initialization time < 5 s
  Initialization reliability > 99.9%
Network RTK Horizontal: 8 mm + 0.5 ppm RMS
  Vertical: 15 mm + 0.5 ppm RMS
  Initialization time < 10 s
  Initialization reliability > 99.9%
Dimensions (H×W) 14 cm × 12.4 cm (5.5 in x 4.9 in)
Weight 1.22 kg (2.69 lbs) with batteries
Operating -40 °C to +75 °C (-40°F to 167°F)
Storage -55 °C to +85°C (-67°F to 185°F)
Humidity 100% condensation
Dust and Waterproof IP68, protected from temporary immersion to depth of 1 m (unit floats)
Shock and vibration 3 m (9.8 ft) pole drop onto concrete, MIL-STD-810G
LCD 128x64dpi sunlight readable with function/accept buttons
Certification and Calibrations
FCC Part 15 (Class B Device), FCC Part 22, 24, 90; CE Mark; C-Tick; Bluetooth EPL, NGS Antenna Calibration, IGS Antenna Calibration, MIL-STD-810G.
Communications and Data Recording(2)
Serial 2 x 7pin LEMO port (external power, USB data download, USB update, RS-232)
External Power 12 to 36 VDC
USB v2 - mounts as high-speed USB thumb drive
Cellular Internally integrated 3.75G modem (optional 4G modem)
  HSPA+ 21 Mbps (download), 5.76 Mbps (upload)
  WCDMA 850/900/1700/1900/2100
  EDGE/GPRS/GSM 850/900/1800/1900
Bluetooth® Internally integrated multimode system compatible with Android, Windows Mobile, iOS and Windows desktop operating systems
WiFi 802.11 b/g/n, access point mode
UHF Radios (2) Protected TNC Female
Standard Internal Rx/Tx: 450 - 470 Mhz; transmit power: 0.1 W to 2 W, protocol CHC; range: 5 km optimal conditions
Option 2 FCC Certified Internal Rx/Tx: 403- 473 MHz; transmit power: 0.1 W to 1 W, protocols Trimble, Satel, Pacific Crest; range: 5 km optimal conditions
Protocols CMR: CMR+, sCMRx input and output
  RTCM: 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output
  NMEA 0183 output
  HCN and RINEX static formats
Data Storage 32 GB high-speed memory
Power consumption <3.2 W
Li-ion battery capacity 3400 mAh*2, 7.4 V
Operating time Setup of multiple data stream
External power 12 to 36 V DC
