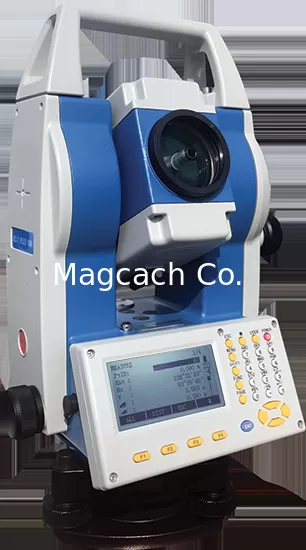

Stonex R2 total station

China Stonex R2 total station supplier
Stonex R2 total station supplier Stonex R2 total station supplier Stonex R2 total station supplier Stonex R2 total station supplier

Large Image :  Stonex R2 total station

Product Details:

Place of Origin: China
Brand Name: Stonex
Certification: CE
Model Number: R2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description

Stonex R2 total station


Stonex R2 total station

Product feature:
Excellent optical machine structure
The leading edge of precision machinery and optics is integrated with high integrated circuit design and laser pointing function to achieve high accuracy and stability in R2 ranging.

Automatic biaxial compensation
Fully automatic double shaft compensator can achieve precise leveling and ensure the accuracy of horizontal position. Under the condition of under leveling (compensation range), the high-precision double shaft compensator can also ensure accurate measurement.

32 bit microprocessor
The product uses 32 bit microprocessor, optimizes the interface comprehensively and redesigns the software structure. A large number of shortcut keys are added to the common functions, which are more in line with the user's measurement and use habits.

Multi lattice liquid crystal display
The 240X128 dot matrix LCD display can display 8 lines of English at the same time, showing almost all the measurement information on one screen to avoid frequent page turning. The screen has backlight support to facilitate the mastery of various observations and information in a dark environment.

Temperature pressure sensor
In order to avoid the influence of temperature and air pressure on the measurement results, the temperature and pressure sensors outside the R2 can monitor the changes of them in real time, and automatically make meteorological corrections, adjust the processing results, and effectively improve the measurement accuracy.

The micro movement and the opposite point of the laser
The leading mechanical process ensures the quality of the fretting system and brings comfortable touch feedback. The point design under the laser can be carried out quickly and accurately. Even under unfavorable light conditions, the brightness of the laser can be adjusted and visible.

Multiple modes of communication
It provides a variety of convenient ways of communication. Standard interfaces RS232C, USB and SD cards are all available, and can be customized for Bluetooth wireless communication, one button transmission to achieve rapid data migration.

Large capacity lithium battery
The design of low power circuit is designed, which is equipped with two 4000mAh large capacity lithium batteries, which is enough for R2 to keep working for more than 24 hours in continuous operation. It doesn't bother with battery life anymore.

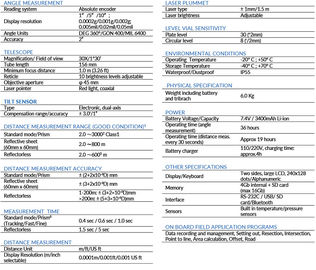

Technical Parameter

Model R2
Telescope Mirror tube length 156mm
imaging Positive
Effective diameter of objective lens(EDM) Ф45mm
Magnification 30X
field 1°30′
Discrimination (JIS) 3.5″
Shortest range of visibility 1.0m
Range finder Ranging light source (visible lase)650~690nm
Spot diameter 12mm/50mm ellipse
Laser grade Class3
Measuring range(good weather condition) Non-prism 600m
Reflector RP60 1000m
Mini prism 1200m
Single prism 5000m
Precision of distance measurement Prism ±(2+2×10-6·D)mm
Reflector,Non-prism ±(3+2×10-6·D)mm
Measurement time 1.0s/0.3s(precision / tracking); initial:2.5s
Minimum reading of distance measurement Precision measurement mode:1mm
Tracking measurement mode:10mm
Range of temperature setting -40ºC~+60ºC
temperature range 1ºC(automatic correction)
Atmospheric correction 500hPa-1500 hPa
atmospheric pressure 1hPa(automatic correction)
Prism constant correction -99.9mm ~ +99.9mm
Long level bubble Tube type bubble precision 30″/2mm
Circular bubble precision 8′/2mm
Graphical electronic level 30″/2mm;range:3′;Accurancy:1″
Laser counter point device Light spot size / energy Adjustable
Laser class Class2/IEC60825-1
wavelength 635nm
accuracy ±0.8mm/1.5m
Angle measurement Reading system Absolute coding system
Minimum reading 1″/5″
Precision 2″
Display unit 360°/400gon/6400mil
Midpoint of optical pair(selection) accuracy ±0.8mm/1.5m
Imaging Positive
Magnification 3X
Compensator Compensator method Dual axis compensation
Range of compensation ±3′
Display type LCD display on both sides
(8 lines and 15 columns of English )
lighting LCD backlight
Screen resolution 240*128
Power Supply Battery 4000mAh lithium battery
working voltage 7.4V
Working time >24 hours
Charger FDJ6-Li
Communication and physical parameters Memory point Host RAM with 120000 points
Hot plugged SD card
Host weight (with battery) 6KG
volume 184X220X360MM(WXDXH)
temperature range -20ºC~ +50ºC
I/O upload / download Having the functions of uploading and downloading
dataRS232C/USB/SD card(Bluetooth customizable)
Waterproof grade IP54(IEC60529)
sensor Automatic correction of external temperature
and pressure sensor
Note: good weather conditions (no fog, visibility 30Km);
