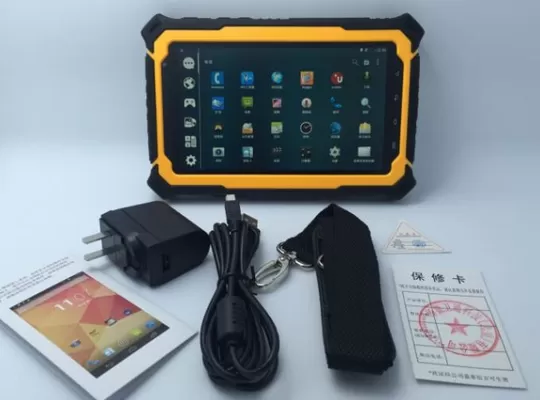

Sub-Meter Industrial Plate HV-T700

China Sub-Meter Industrial Plate HV-T700 supplier
Sub-Meter Industrial Plate HV-T700 supplier Sub-Meter Industrial Plate HV-T700 supplier Sub-Meter Industrial Plate HV-T700 supplier Sub-Meter Industrial Plate HV-T700 supplier

Large Image :  Sub-Meter Industrial Plate HV-T700

Product Details:

Place of Origin: China
Brand Name: Huaneng Wei Tong
Certification: CE
Model Number: Huaneng Wei Tong HV-C30W Portable Solar Charging Power Supply System

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: with standard packing way
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000000 per pc
Contact Now
Detailed Product Description

The HV-T700 is a GPS GLONASS dual-system sub-meter industrial panel with a 7-inch fully hardened capacitive touch screen. The industrial three defense class of the IP67, visible in outdoor sunlight, conforms to the military protection class, resists the drop of 1.8 meters at any angle, and has a four-core processor. Built-in WiFi, Bluetooth, gyroscope and other modules, using the most advanced process structure design, the fuselage lightweight, easy to carry, durable, built-in 11000 Ma high capacity battery, to ensure a long time field work.


Sub-Meter Industrial Plate HV-T700Sub-Meter Industrial Plate HV-T700

Product Features :

  • Data acquisition:

Loading TMAPPER mobile GIS data acquisition system, using online and offline working mode, remote sensing image map, easy sampling points, measuring area and other field


measurement work, and can load various vector format maps.


  • Navigation function:

GPS accuracy: sub-meter accuracy.


Can accept GPS, GLONASS, Galilo and QZSS and other systems. Support A-GPS wide area differential signal: support




  • Communication function:

SIM card interface: support, general 1.8 / 3.3 V SIM card. 2G:850/900/1800/1900MHZ.


3G: 850/2100MHZ , 850/1900MHZ , 900/1900MHZ. WIFI:802.11B/G/N direct connection. Bluetooth:BT4.0 (A2DP+EDR).


Charging / data interface: USB Micro 5 Pin.

  • Camera function:


Post-8 million pixels auto-focus preposition 5 million



Sub-Meter Industrial Plate HV-T700


  • Data post-processing function:

Domestic data post-processing software supports the import and export of various data formats (excel / KMLT / TXT), and also supports the import and export of data from many GPS brands such as Jiaming, Magellan ZYSTAR and so on. It has the functions of field drawing and printing.


  • Additional function :

Built-in compass, gyroscope, gravity sensor, motion, gravity, geomagnetic sensor.



Detailed technical specifications of HV-T700:


    Processor     1.5GHz eight-core processor
    Operating system Android 4.4.2
    Memory capacity   3G RAM + 32G ROM
    Memory card     Built-in TF card interface, maximum support for 64GB extension
          IP67, fall protection conforms to MIL-STD-810G / R 516.6% Procedure IV
    Three defense grade   military protection grade, up to 1.8m drop at any angle above 2 tons static
          pressure test
  RFID     Optional
  Fingerprint scan /
  one-dimensional   Optional
    code scan
    Size (mm)     204*136*21mm(L×W×H)
    Weight (g)     650g
    Working temperature   -30°C - 65°C
    Storage temperature   -40°C - 80°C
    Relative humidity   5% to 95% in non-condensed state
    Operational altitude   Maximum working height: 4500m (15000 ft)
  Display Display screen   7.0 "IPS / AFFS full viewing angle" 1, 000 lumens visible in the sun
  characteri Touch screen   Surface hardness of fully hardened capacitive touch screen greater than 8H
  Resolution ratio   1024*600

Sub-Meter Industrial Plate HV-T700

Language  :

Supports more than 100 languages including Chinese, English, Spain, Russia,Portugal, etc




Battery : 11000mAh large capacity lithium battery
