HT-225E Concrete Test Hammer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Concrete Test Hammer | Standard Impact Energy: | 2.207±0.1J（0.225Kgf.m) |
|---|---|---|---|
| Length Of Spring Stretch: | 75±0.3mm | Tension Spring Stiffness: | 785±30N/m |
| The Static Friction Of Pointer Slider: | 0.65N±0.15N | Measuring Ranges: | 10-60MPa |

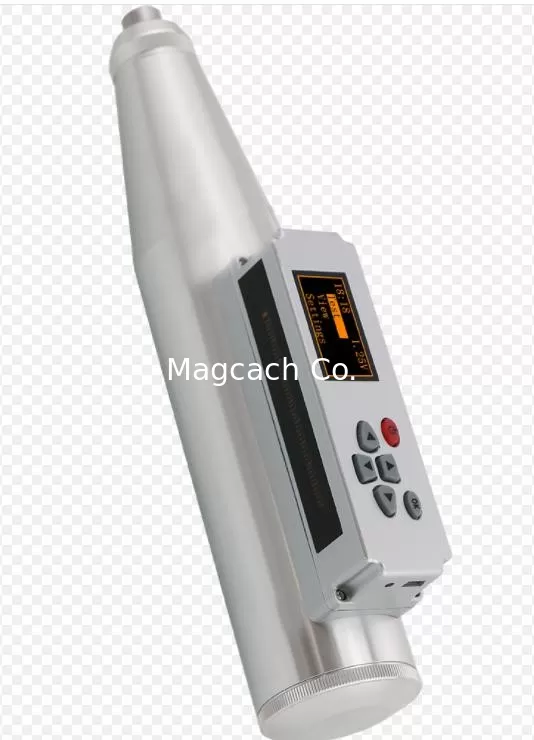

HT-225E Concrete Test Hammer
Brief Introduction:
HT-225E Digital Concrete Hammer is a high-tech product, especially designed for the needs of in place test for concrete compressive strength, applied to non-destructive test (NDT) hardened concrete compressive strength component in construct projects.
Features:
● Submit to < Technical Specification of Inspecting Concrete Compressive Strength by Rebound Method > (JGJ/T23-2011). And ASTM C805, EN 12504
● Unique automatic recording function improves the efficiency of measurement
● Non-contact grating sensor with high precision
● Large storage capacity
● Adopting USB interface, as U flash disk, no need special driver
● Digital part is suitable for all mechanical hammers of our company easily installed and serviced
Standard Delivery
● Main Unit
● Software
● USB connecting cable
● Power charger
● Carborundum stone
● Manual
● Warranty card
● Calibration Certification
● Add “NiMH rechargeable batteries 2 pcs(AA)”
| Model | HT225-E |
| Measuring ranges | 10-60MPa |
| Impact energy | 2.207±0.1J(0.225Kgf.m) |
| Length of spring stretch | 75±0.3mm |
| Tension spring stiffness | 785±30N/m |
| The static friction of pointer slider | 0.65N±0.15N |
| Radius of spherical tip | 25mm±1mm |
| The average rebound values on steel anvil | 80±2 |
| Data storage capacity | 200 standard components |
| Power supply | 1×5# Ni-MH rechargeable battery |
| Housing dimensions | Φ54×280mm |
| Weight | ≈1kg |
