CH800-A Floor Slab Thickness Meter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | CH800-A Floor Slab Thickness Meter | Test Scope: | 40mm～800mm |
|---|---|---|---|
| Permissible Error: | 40 ～ 600 Mm ±1 Mm 601～ 800 Mm ±2 Mm | Data Storage Capacity: | 3.2 Group Data |

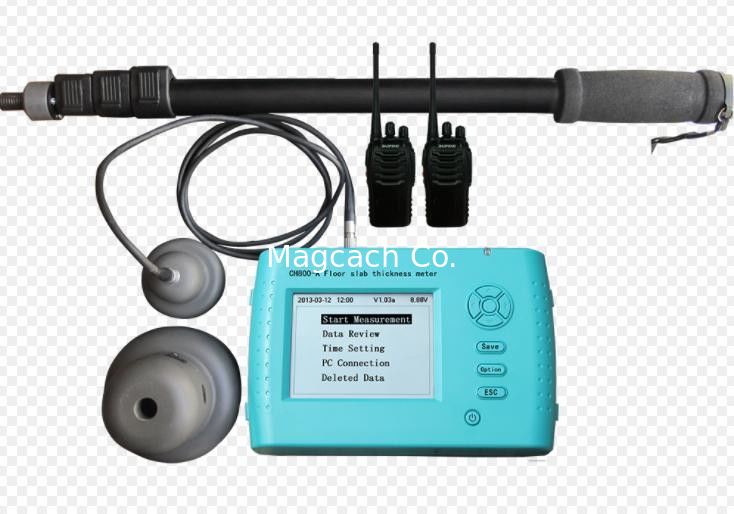

CH800-A Floor Slab Thickness Meter
Adoption standard
GB 50204-2002
Product usage
Testing concrete floor thickness
Detection nonmetallic material thickness(Wall, beam, pillar, lumber, ceramic)
Features
1. Host and receiving probe adopt fission style to decrease contact surface of receiving probe and floor
2. Intelligent read result and automatic lock and real-time display thickness value reduce the human error and labor intensity.
3. Emission probe and receiving probe is wireless communication mode. No need to contact any wire.
4. Nondestructive testing of double surfaces. Floor does not need any treatment. No need coupling agent.
5. High test speed. Average 3 minutes could test 3-5 test points.
6. High test precision. Instrument provides data to guide to aim at the probe.
7. Thickness display directly. No need analysis conversion. The results can be stored and printed.
Work environment condition
Ambient temperature:-10℃ — +40℃( Avoid long time sun direct explosion )
Relative humidity (RH)
Electromagnetic interference (EMI)
No strong alternating electromagnetic field
Main performance index
| Test scope | 40mm～800mm |
| Permissible error | 40 ～ 600 mm ±1 mm |
| 601～ 800 mm ±2 mm | |
| Data storage capacity | 3.2 group data |
| Operational environment: | |
| Temperature | -10℃～＋40℃ |
| Dampness | <90%RH |
| EMI | no strong electromagnetic field |
| Batteries | 6 dry cells, work more than 30 hours |
