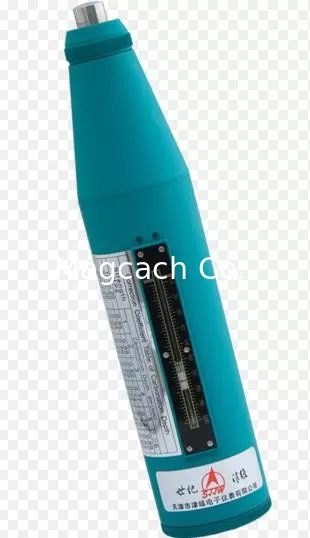

HT-75B test hammer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Mortar Test Hammer | Standard Impact Energy: | 0.735J |
|---|---|---|---|
| Stroke Of Rebound Hammer: | 75mm | Friction Of Pointer Slider: | 0.5N±0.1N |
| Sphere Radius Of Rebound Pole SR: | 25mm±1mm |
HT-75 Mortar Test Hammer
Brief introduction:
Submit to standard of GB/T50315-2000,the instrument is applied to test light material such as brick, light bone concrete etc.
Trait:
1)Center rod use imported material, high precision, wear proof;
2)Shell use polymer composites with high elasticity and perfect hand feel, protecting instrument from damage on site test work and prolong use life;
3)Pointer slider is outside ring structure, easy to adjust friction, and assure equal friction between pointer slider and axis. And assure the precision of instrument, compare with similar other brand product, it’s good precision, longer use life and better price. Specially suitable for brick factory or brick user
Parameter:
| Standard impact energy | 0.735J |
| Stroke of rebound hammer | 75mm |
| Friction of pointer slider | 0.5N±0.1N |
| Sphere radius of rebound pole SR | 25mm±1mm |
| verage rebound value on steel anvil | 74±2 |
| Size | Φ54*268mm |
| Weight | ≈1KG |
