HT-70 Mortar Test Hammer

China HT-70 Mortar Test Hammer supplier
HT-70 Mortar Test Hammer supplier HT-70 Mortar Test Hammer supplier

Large Image :  HT-70 Mortar Test Hammer

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: HT-70

Payment & Shipping Terms:

Minimum Order Quantity: 10pc
Price: usd110-usd130 per pc
Packaging Details: With Standard Export Shipping Way : There are 10pc into one Carton
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: Mortar Test Hammer Standard Impact Energy: 0.735J
Stroke Of Rebound Hammer: 75mm Friction Of Pointer Slider: 0.4N~0.6N

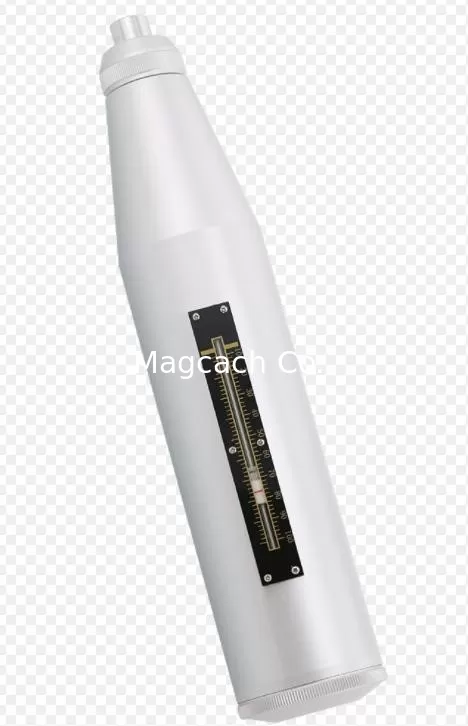

HT-70 Mortar Test Hammer


HT-70 Mortar Test Hammer


Brief introduction:

Submit to standard of GB/T50315-2000,the instrument is applied to test light material such as brick, light bone concrete etc.


1)Center rod use imported material, high precision, wear proof;

2)Shell use super hard aluminums, protect instrument from damage on site test work, prolong use life;

3)Pointer slider is outside ring structure, easy to adjust friction, and assure equal friction between pointer slider and axis. And assure the precision of instrument, compare with similar other brand product, it’s good precision, longer use life and better price. Specially suitable for brick factory or brick user




Standard impact energy 0.735J
Stroke of rebound hammer 75mm
Friction of pointer slider 0.4N~0.6N
Sphere radius of rebound pole SR 25mm±1mm
verage rebound value on steel anvil 74±2
Size Φ54*268mm
Weight ≈1KG
