HT-20 mortar test hammer

China HT-20 mortar test hammer supplier
HT-20 mortar test hammer supplier HT-20 mortar test hammer supplier

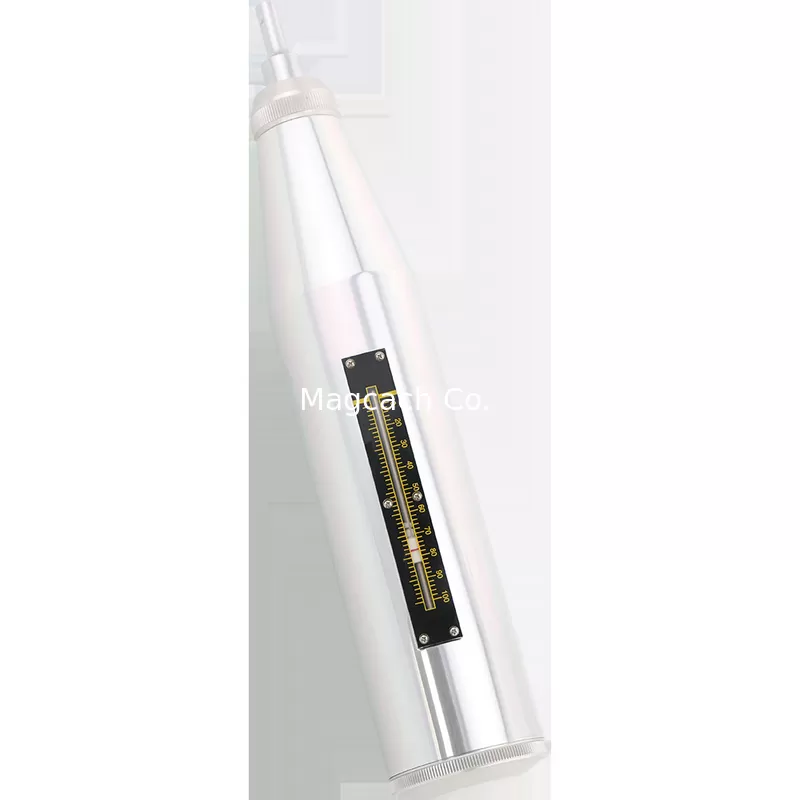

Large Image :  HT-20 mortar test hammer

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: HT-20

Payment & Shipping Terms:

Minimum Order Quantity: 10pc
Price: usd110-usd130 per pc
Packaging Details: With Standard Export Shipping Way : There are 10pc into one Carton
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: Mortar Test Hammer Test Range: 1.0~25Mpa
Standard Impact Energy: 0.196J(0.02kgf.m) Stroke Of Rebound Hammer: 75mm
Friction Of Pointer Slider: 0.4N~0.6N

HT-20 Mortar Test Hammer



HT-20 mortar test hammer

Brief introduction:

This instrument is specially used in testing the compressive strength of mortar in building brick component.


1)Center rod use imported materials, high precision, wear proof.

2)Shell made from super hard aluminum, perfectly protect instrument from damage on site work, and prolong use life.;

3)Pointer slider is outside ring structure, easy to adjust friction, and assure the equal friction between pointer slider and axis, so that assure the accuracy of instrument. Compare with other brand similar product, it’s better accuracy, longer use life.



Test range 1.0~25Mpa
Standard impact energy 0.196J(0.02kgf.m)
Stroke of rebound hammer 75mm
Friction of pointer slider 0.4N~0.6N
Sphere radius of rebound pole SR 25mm
Average rebound hammer on steel anvil 74±2
Size Φ54*268mm
Weight ≈1KG
